Basic Info.
Model NO.
JG130S
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Boom Length
4200mm
Arm Length
2000mm
Maximum Digging Reach
7200mm
Transport Package
Nude Packing
Specification
7200*2500*3000mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000units/ Year

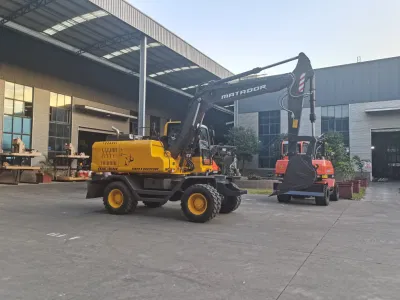

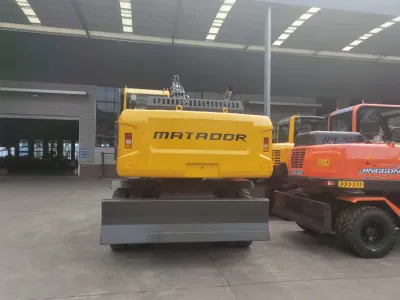

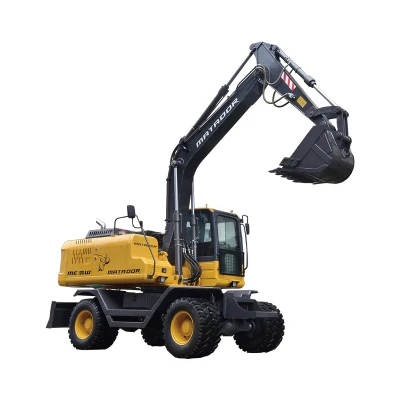

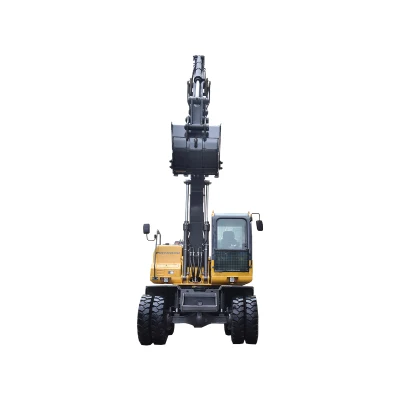

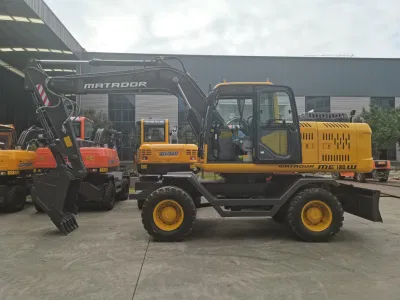

Product Description
JG103S adopts a new appearance, concise atmosphere; fuel-efficient and efficient; excellent handling; new
cab, comfortable operating environment, good vision and low vibration.
It is suitable for the needs of road construction, mining, agriculture and forestry clamping, water conservancy
and power construction, bridge construction, urban construction and municipal construction. JG120S
excavator can easily solve for customers and help customers get the most value.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4100mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 8000mm | |||||||||
| Maximum Dumping Height | 6000mm | |||||||||
| Back-end radius of gyration | 2250mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7200*2500*3000mm | ||||||||
| Wheel base | 2750mm | |||||||||
| Track(Front/rear) | 1900mm | |||||||||
| Ground clearance of counterweight | 1260mm | |||||||||
| Min ground clearance | 310mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 12500kg | |||||||||
| Engine model | Cummins 4BTAA3.9 | |||||||||
| Rated Power | 93KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 900.20 | |||||||||
| Volume Of Bucket | 0.4-0.5m3 | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Capacity Of The Fuel Tank | 200L | |||||||||
| Hydraulic Tank Capacity | 200L | |||||||||
