Product Description

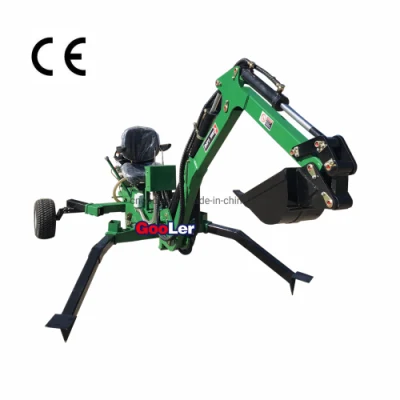

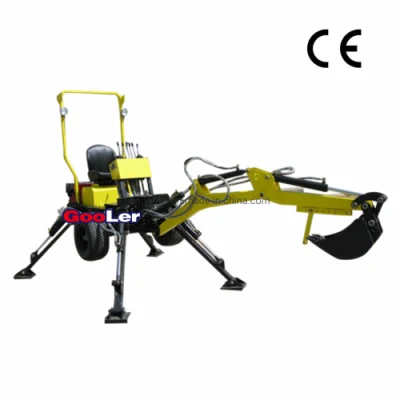

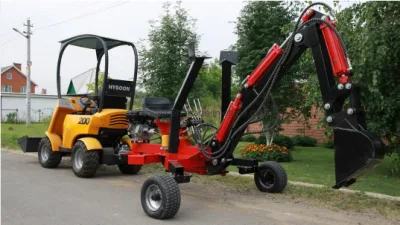

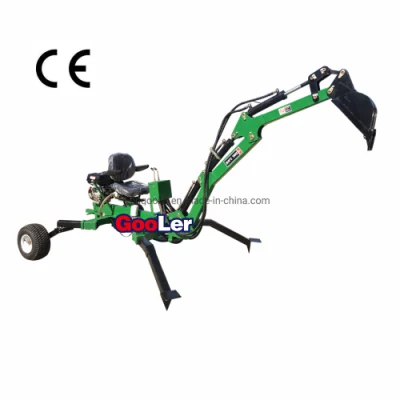

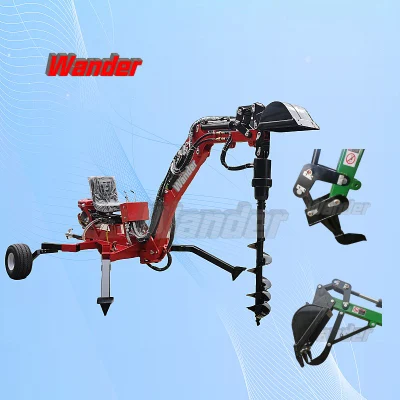

Towable mini Digger can be towable by ATV,UTV eg,easy tranport,
which is use for small digging and construction work.
It is the ideal tool for all your landscaping,drainage,and material handing
needs whether it is at home in the city,the countryside, or in the woods.
Effortlessly dig trenches,plant trees,landscape the yard,lift heavy objects,
build a retaining wall,demolish a shed and tackle other labour-intensive
jobs with this towable excavator.
| Technical date of ATV Towable Backhoe Excavator | |
| MODEL | ATV-9 |
| Power | 9/10/13/14/15HP Gasoline engine |
| Structure Weight | 550kgs |
| Max Digging Deep | 2400mm |
| Max digging Radius | 2800mm |
| Max Digging Height | 2500mm |
| Max Unloading Height | 1200mm |
| Stabilier Width | 1800mm |
| Swing Angle For Boom | 140° |
| Bucket Turnning Angle | 160° |
| Bucket Cubage | 0.036m³ |
| Load capacity without counterweight | 180kg |
| Load capacity with counter weight | 326kg |
| Bucket Width | 300mm,optional:200mm/400mm/600mm |
| Coupler Size | 2``Ball for Easy Towing |
| Packing dimensions(LxWxH) | 1800mmx1100mmx900mm |
| Pump | Double Speed Gear Pump |
| Container Loading | 12pcs/20FT,39pcs/40HQ |
Options for Additional Configuration: 1) Bucket size can be chosen, 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets.
2)V type bucket,thumb,ditching finger also be availible.
3)Gasoline engine brand like Kohler, Honda, B&S etc.
4)Different engine opotion,9-15hp gasoline or diesel engine.
5) Tyre can be changed as your request.
6)Can be changed as your color
Packaging & Delivery
Selling Units: Single item
Single package size: 180X110X90 cm
Single gross weight: 550.0 kg
Package Type:
Iron frame packing or Wooden packing.
For one sample 1800mmx1100mmx900mm iron frame package with film dustcover.
For container then 3pcs in one 2200mmx900mmx2550mm iron frame package with film dustcover.
