Basic Info.
Model NO.
JG75S-9
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Rated Power
50kw
Rated Speed
2200r/Min
Transport Package
Standard Packing
Specification
5500*2100*2850mm
Trademark
JING GONG
Origin
China
HS Code
842952
Production Capacity
3000sets/Year
Product Description

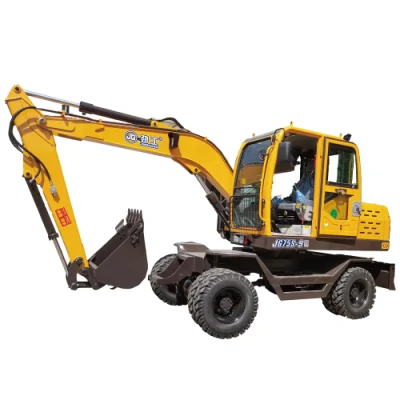

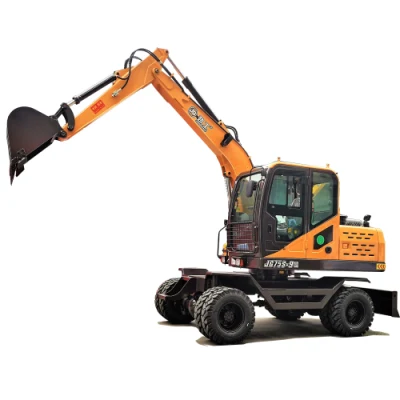

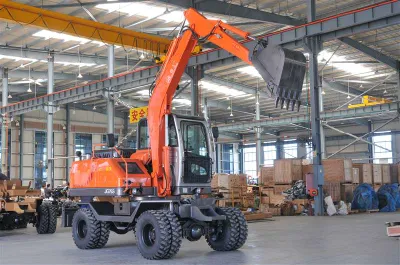

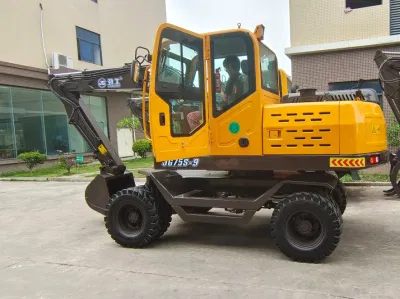

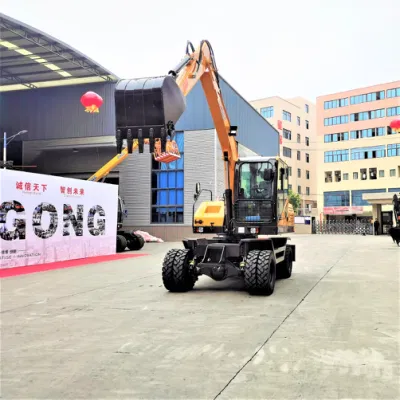

6 Ton China Wheel Excavator Factory for Sale
JG75S Wheel excavator, which is speically desiged for Four wheel driving tire excavator for sugarcane loading and unloading farmer use, with good satisfaction. Now we have new developed 360 ° rotating bamboo (sugar cane) pick up machine. Our sugarcane loading machine with the unique spin-stop brake reliability, the grapple can open maximum distance of up to 1.25 meters, the maximum pick up weight up to 500-800kg, equipped with legs with bulldozers, greatly enhance the work of the machine stability and balance .
Also with a lots of attachments such as breaking hammer, earth digger, digging machine, breaker, stone grapple, log wood grapple, bulldozing plate rotating inflection clip wood ,salt hopper steel scrap hopper ,lath-stone jig ,bucket fast converter etc to satisfy market demands . These various of work devices can adapt different work environments and fully exert application range and practical valve of excavators and create much better economic benefits for customers
| JG75S-9 Wheel Excavator SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3030mm | ||||||||
| Arm length | 1860mm | |||||||||
| Maximum Digging Reach | 6000mm | |||||||||
| Maximum Digging Depth | 3380mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 5800mm | |||||||||
| Maximum Dumping Height | 4300mm | |||||||||
| Back-end radius of gyration | 1775mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5500*2100*2850mm | ||||||||
| Wheel base | 2600mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 6000kg | |||||||||
| Engine model | YN36GB2/4100 | |||||||||
| Rated Power | 50KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 19.5Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 35km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 750.16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
1. Use specified high-quality cylinder
2. New Integrated console makes it comfortable when operating
3. Development Patent: Grapple rotates flexibly to improve work efficiency
4. Luxury cab with air conditioner & multi-functional charging interface & comfortable seat with shock resistance, Lift cab, bright and spacious, wide vision, low noise, reduce driver's fatigue and improve work efficiency
5. Full hydraulic pilot operation, advanced and perfect operation system, light and flexible
6. The whole machine use high-quality steel, which is strong, reliable and more durable
7. Strong drive system, high carrying capacity, great tractive force to resist impact
8. Equipped with multi-way valve, hydraulic system, walking motor from South Korea, advanced and reliable
9. New condition engine with turbocharged, adopt domestic famous engine brand, which ensures low fuel consumption, strong power and high reliability
10. Inlet and outlet oil tubes are all used steel braided tubes, oil resistant and high-pressure tubes, safe and reliable
11. Use engineering cross-country tires, strong anti friction
