Basic Info.
Product Description

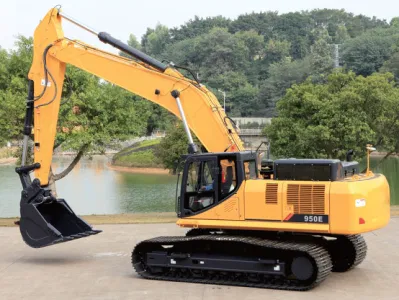

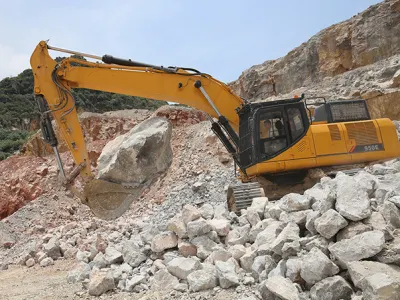

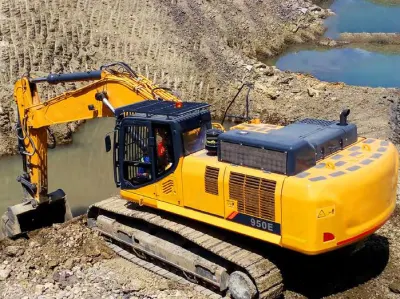

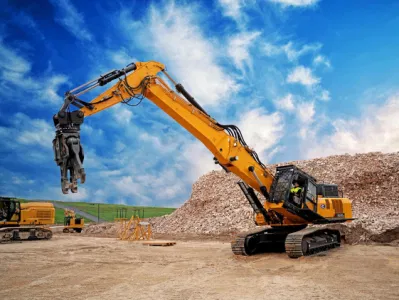

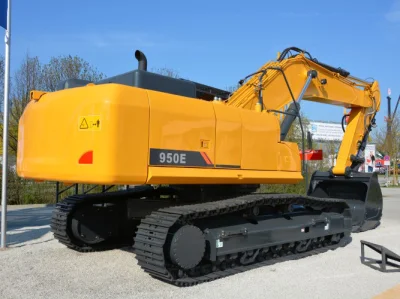

Liugong Brand New 50 Ton Crawler Excavator 950E Heavy Digging Machine
1. The 950E is powered by the latest Cum-mins QSM11 engine with a rated net power of 260 kW (349 hp) @ 2,100 rpm in compliance with EU Stage IIIA emission standards.
2. Heavy duty undercarriage components, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage.
3. ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System) safeguard your operator in the toughest environment.
4. Visibility is key to protecting your operator and workers on site. The large glass surface area, spacious cab, combined with the rear-view camera, provides an extraordinary view of the 950E's surroundings.
Inspection parts, filters and water separator are conveniently located.
| Operating weight with cab | 46500-48300 kg |
| Engine power | 280 kW (375 hp) @ 2000 rpm |
| Bucket capacity | 2.2 / 2.6 / 2.8 / 3.2 m³ |
| Maximum travel speed (High) | 5.5 km/h |
| Maximum travel speed (Low) | 3.3 km/h |
| Maximum swing speed | 8.5 rpm |
| Arm breakout force | 255/240/209 kN |
| Arm breakout force Power boost | 270/263/225 kN |
| Bucket breakout force | 265/263/268 kN |
| Bucket breakout force Power boost | 280/287/288 kN |
| Shipping length | 11515/12030/12062 mm |
| Shipping width | 3340 mm |
| Shipping height | 3810 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6500/7060/7060 mm |
| Arm | 2550/2900/3380 mm |
| Digging reach | 10625/11585/12020 mm |
| Digging reach on ground | 10388/11368/11810 mm |
| Digging depth | 6521/7380/7860 mm |
| Vertical wall digging depth | 5204/6011/6435 mm |
| Cutting height | 9977/10618/10785 mm |
| Dumping height | 7038/7578/7520 mm |
| Minimum front swing radius | 4645/5052/5015 mm |
| Model | Cum-mins QSM11 |
| Emission | EPA Tier 3 / EU Stage IIIA |
| System maximum flow | 2×380 L/min (2x100 gal/min) |
| System pressure | 32.3 MPa |
