Basic Info.
Model NO.
Se210-9/R215-7c/Dh215-9e/Cx210b/Sk210/Jcb Js205LC
Drive Type
Internal Combustion Drive
Bucket Capacity
0.9m3
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Excavator Rated Power
110kw
Track Shoe
600/700/800mm
Bucket Size
1.2cbm
Operating Weight
21420kg
Transport Package
Nude Package
Specification
9120*2990*2180mm
Trademark
Liebty
Origin
China
HS Code
842952
Production Capacity
5000 Pices/Year
Product Description

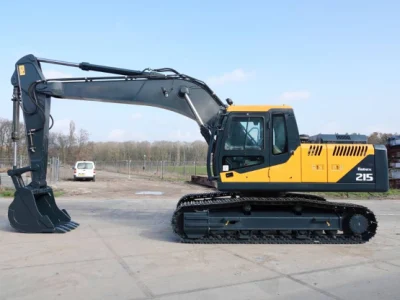

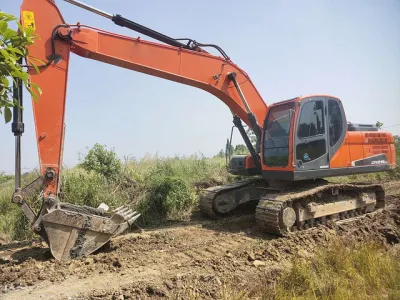

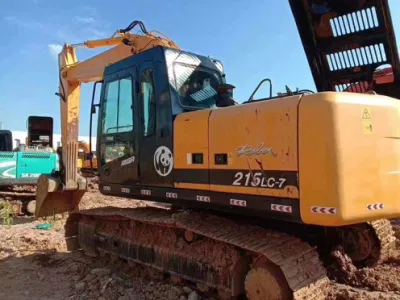

New Crawler Excavators Machine Operation Weight 21 Ton Se210-9/R215-7c/Dh215-9e/Cx210b/Sk210/Jcb Js205LC
Katharine Zhou

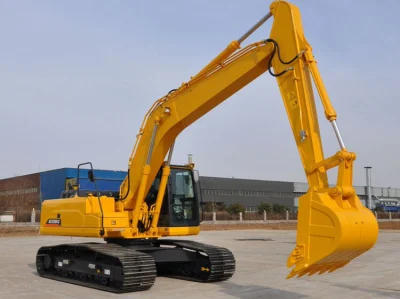

Shantui Excavator SE210-9
The medium-sized workhorse in Shantui's lineup of excavators
Engine model: Cum--mins B5.9-C (Tier 2)
Rated power: 112 kW/1950 rpm
Operating weight: 20.8 t
Water cooling, in-line ,6 cylinders, turbocharging
Quantity of cylinders: 6
Bucket capacity: Backhoe bucket 0.9 m3 (SAE)
Number of bucket teeth: 4
* The paralleling radiator is adopted to effectively prevent the overheating. The exhaust system is optimized based on the Fluent simulation to reduce the exhaust noise and improve the engine
power utilization effciency. The transmission route is optimized based on the MATLAB vibration system simulation principle so that the noise level of the machine is superior to CE standard
requirement. The three-stage integrate fuel filter and the electric fuel pump guarantee the good fuel adaptability and effectively protect the engine.
* Product reliability: The high quality core parts and the design optimized working device feature stable and reliable quality.
* Operations and maintenances: The large color display can real-time monitor the working status of machine mode and incorporates the malfunction self-diagnosis and record function.
The multi-stage power control is adopted for the manual and electronic accelerators so that the user can select different working modes depending on own needs. The diversified optional
attachments, including breaking hammer, ripper, and quick change device, can be equipped to realize the digging, landfill, breaking,and leveling operations, featuring multi-function capability.
The remote installation locations for the maintenance parts ease the maintenance operations..
* Comfort: Within the spacious cab, the arrangement and color matching of the upholstery are designed as per the ergonomic principle. The full-automatic A/C system, automatic air vent
adjustment and distribution, and height and position adjustable seats feature excellent adaptability. The cab is equipped with composite shock absorbers to effectively mitigate the vibration of
the cab.
* Appearance: The all-new modeling is designed as per bionic principle and is covered with fully molded and electrophoresis treated coverings.
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 7 years experience on machine and spare parts supplying, we are efforts to supply Genuine spare parts with good prices, quick response and professional service.
| ENGINE | Model | Cum--ins QSB7 |
| Type | High pressure and common rail, water cooling, in-line ,6 cylinders, turbocharging | |
| Quantity of cylinders | 6 | |
| Bore x stroke | 107 x 124 mm | |
| Displacement | 6.7 L | |
| Power output | 124 kW/2050 rpm | |
| Maximum torque | 658N.m/800-1800rpm | |
HYDRAULIC SYSTEM | Pump | Imported |
| Type | Variable piston pump | |
| Maximum discharge flow | 2x213 L/min | |
| Control circuit | 3.9 MPa | |
| Travel circuit | 34.3 MPa | |
| Swing circuit | 25.5 MPa | |
| TRAVEL SYSTEM | Travel motor | Variable axial piston motor |
| Travel brakes | Lubricated double-disc | |
| Parking brake | Pressure release | |
| Travel shoes | 2 x 46 | |
| Travel speed | 3.15/5.15 km/h | |
| Drawbar pulling force | 214 kN | |
| Gradeability | 70% | |
| Minimum ground clearance | 470 mm | |
| OIL CAPACITY | Fuel tank | 330 L |
| Cooling system | 28 L | |
| Engine oil | 22 L | |
| Hydraulic oil tank | 270 L | |
| System capacity | 400 L | |
| SWING SYSTEM | Brake | Pressure Release Mechanical Braking |
| Swing speed | 11 rpm | |
| Tail swing radius | 2925 mm | |
| Arm digging force | 99/107 KN | |
| Bucket digging force | 135/146 KN | |
| BUCKET | Bucket capacity | Backhoe bucket 0.9 m3 (SAE) |
| Number of bucket teeth | 5 | |
| Bucket width | 1267 mm | |
| Arm length | 2.925 m | |
Maximum digging reach/ Maximum digging reach at ground level | 9.86 m/ 9.675 m | |
| Maximum digging depth/height | 6.49 m/10.095 m | |
| Maximum dumping height | 7.19 m | |
| Minimum swing radius | 2.97 m |
