Basic Info.
Model NO.
SWRSC700H
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Product Name
Material Ahndler
Brand
Sinoway
Model
Swrsc700h
Lifting Torque
68 T.M
Capacity
300-400 Ton
Max. Travel Speed
24 M/S
Control Method
Hydraulic Pilot
Warranty
One Year
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84314990
Production Capacity
100 PCS / Year
Product Description
Main Features
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machine.
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machineonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.
Product Show
Specification
Why Choose Us
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machine.
The operation process adopts full hydraulic drive to realize stepless speed change of all actions, which overcomes the impact of operation and makes the overall operation process more stable, safe and reliable.
The pilot control is adopted to make the operation lighter, reduce the labor intensity and improve the working efficiency. After changing different grabs, loading and unloading, stacking, reloading and feeding of various bulk cargoes can be realized, thus realizing multi-function of one machineonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.

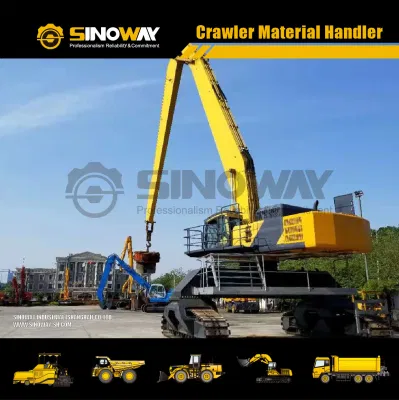

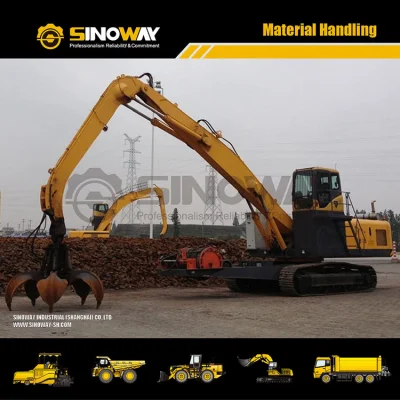

Product Show
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00kKTEgcmaVUqQ/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00bsaTgMwtqUcQ/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
Specification
Unloading machine power form | Can provide motors, diesel power, diesel and electric hybrid |
Lifting torque | ≥ 68t.m |
Max. wheel pressure | 32t |
Walking way | Can provide walking track (with track clamp deice, power brake function), crawler walking |
Way of working | 360° ratating hydraulic grab grasping (cylinder, tubing with guards) |
Rated production efficiency | Wood length 3m @ ≥ 420m³/h Wood length 6m @ ≥ 840m³/h |
Working cycle time | < 45s |
Control method | Hydraulic pilot |
Suitable rail | All kinds of international specifications rail |
Swing speed | 9.6r/min |
Walking speed | ≥ 12m/min |
Working radius | ≥ 13m |
Working height range | 15 m to -3m |
Grabber diameter | 1.5m |
Power supply | 380 / 220 /24 V |
Electrical equipment protection level | IP65 |
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00oStEpKJsHYcT/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00cZTQgnAMHfqE/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
Why Choose Us
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00cjEarAwKbRkT/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00vstEgamIIGqQ/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00eSEazfAhqUbQ/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
![New Material Handler on Rail Swrsc700h Tracked Material Handler](http://img6.grofrom.com/www.bailemachineco.com/226f3j00eKaQgzmqsRcT/New-Material-Handler-on-Rail-Swrsc700h-Tracked-Material-Handler.webp)
