Basic Info.
Product Description

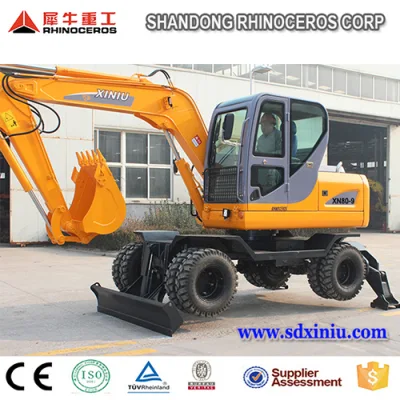

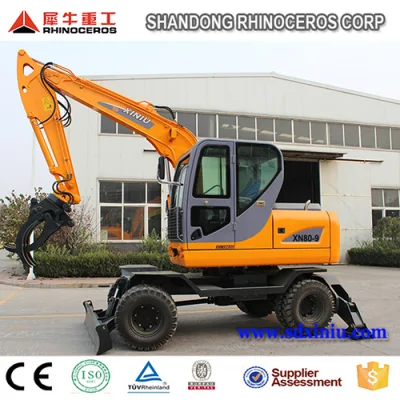

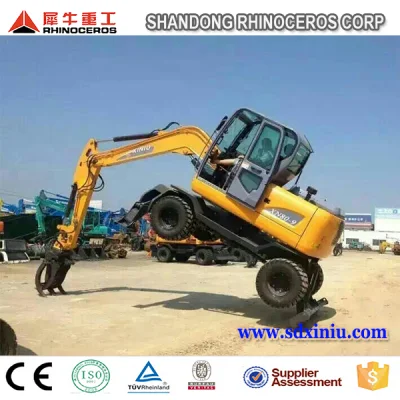

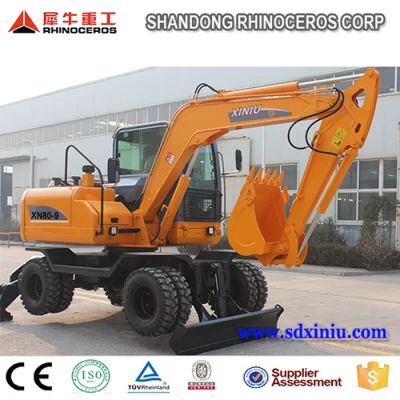

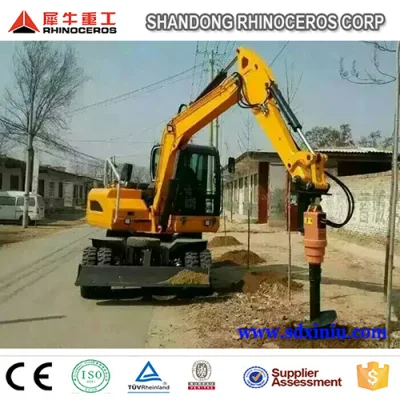

1.Detail information for Wheel excavator XN80-9:
| MAIN DIMENSIONS | UNIT | XN80-9 |
| Operating Weight | kg | 8000 |
| Overall Dimension | mm | 6040x2060x2900 |
| Bucket Capacity | cbm | 0.25 |
| Wheel Base | mm | 2400 |
| Wheel Tread | mm | 1600 |
| Ground Clearance | mm | 290 |
| Blade Height | mm | 295 |
| Blade Dimension | mm | 2024x345 |
| Tire Type | 8.25-16 | |
| SYSTEM CONFIGURATION | ||
| Engine Type | XINCHAI(A498BZG) | |
| Rated Power/Speed | kw | 48 |
| No. of Cylinders/Type | 4 cylinder / in line | |
| Starting Type | Electric 24V | |
| Drive Method 2WD/4WD | Mechanical 4WD | |
| Hydraulic Main Pump | SHIMADZU | |
| Hydraulic System Pressure | MPa | 22 |
| Hydraulic System Flow | L/min | 146 |
| Valve | SUNJIN | |
| Swing Motor | EATON | |
| Max Swing Speed | r/min | 12r/min |
| Travel Motor | ||
| Max Travel Speed | km/h | 35km/h |
| Axle | KAICHUANG | |
| Gear | F: 1-5 ; R: 1 | |
| Bucket Digging Force | Kn | 50 |
| Arm Digging Force | Kn | 38 |
| Grade ability | degree | 35 |
| Working Fuel Consumption | L/h | 6.64 |
| Diesel Oil Tank Capacity | L | 130 |
| Hydraulic Oil Tank Capacity | L | 120 |
| OPERATION RANGE | ||
| Munising Radius | mm | 2552 |
| Boom Length | mm | 3300 |
| Arm Length | mm | 1750/2000 |
| Max Digging Height | mm | 6790 |
| Max Dumping Height | mm | 4910 |
| Max Digging Depth | mm | 2985 |
| Max Digging Radius | mm | 6135 |
| Standard Machine With A/C | AC | Standard |
| Packing Way | 1 unit in a 40HQ | |
| Passed Certificates | CE ISO |
2.Passed Certification for wheel excavator:
3.FACTORY information:
Shandong Rhinoceros Engineering Machinery Co., LTD is a professional manufacturer of construction machinery, engineering machinery and trucks in china, the machines cover wheel excavator 5-15 ton, crawler excavator 6 -45 ton , backhoe loader 5-7 ton, wheel loader 0.5-5ton, concrete pump 21-55 meter, small trucks and mini dumper. So i am confident there must be one model can meet to your needs. Most of the machines are with CE, TUV certificate,company ISO certificate. Please send me message for more information.
All of our products include:
1) crawler excavator: 6t, 7t, 8.4t, 13.5ton;
2) wheel excavator: 5t, 6t, 7t, 8t 10t 15ton, 2wheel driven or 4 wheel driven;
3) backhoe loader XNWZ74180-4L, 7ton, similar to JCB 3cx but much cheaper
4) concrete pump, 22m 25m and 28 meters sizes.
All products good quality with CE ISO certification, and we sold in a very economic price
4.Our coustomer in the exhibition:
5.Our Services
We try our best to making your experience with us a positive one and therefore we stand behind everything we sell.
with 1 years or 1200 working hours manufacturers warranty whichever comes first.
Pre-sale service:
Call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
Studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples and suggestions promotely and considerately, according to customer's production scale and technical requirements.
Selling service:
Promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on choosing the place, how to save cost, and play the maxium value of our machine
After-sale Service:
1. our technicians will provide on-site service to customers in china. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.
2. within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.
3. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
4. our company will research the staffs service attitude aperiodically to improve the service satisfaction
If you're interested in our products ,please feel free time to contact me for more information:
Jessie Du
