Basic Info.
Model NO.
E6400F
Size
Large-Scale
Certification
ISO9001: 2000
Condition
New
Overall Operating Weight
40050kg
Max. Digging Radius
10610mm
Max. Digging Depth
6850mm
Max. Digging Height
10610mm
Engine Brand
Volvo
Engine Type
Inter-Cooled, Four-Cylinder, Supercharged
Engine Power
215kw
Emission Standard
Tier III
Min. Fuel-Consume Ratio
198g/Kw.H
Hydraulic Control Type
Pilot Proportional Control Valve
Hydraulic System Type
Twin Pump Constant Power Negative Flow Control
Transport Package
RO-RO, Container
Specification
3290*3465*3580mm
Trademark
SDLG
Origin
Linyi, Shandong, China
Production Capacity
50000unit/Year
Product Description

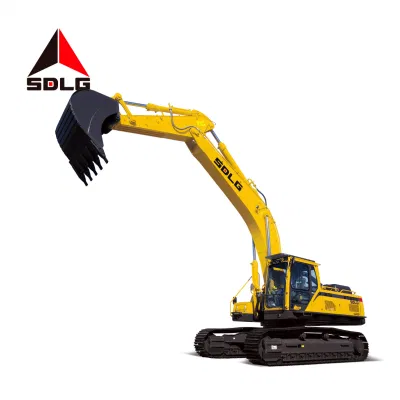

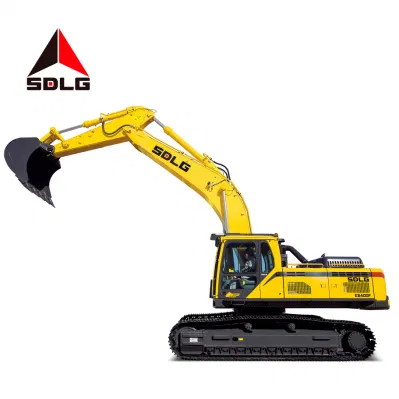

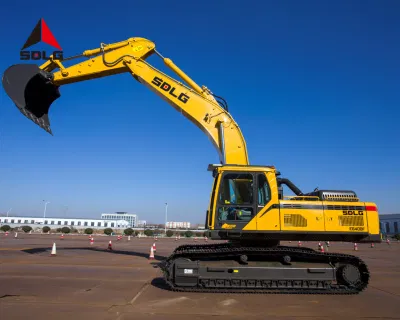

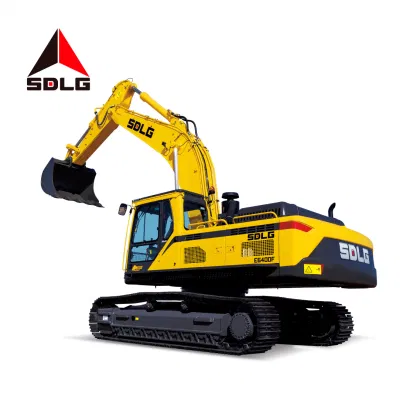

SDLG E6400F 40 ton large heavy construction machines new excavator for sale
SDLG E6400F is an upgrade product based on European advanced technology and manufacturing technology, which is
developed with great concentration suitable for various of harsh operating conditions. It is equipped with specialized SD130A
Tier3 engine for Ling.ng with slow-speed of revolution and large torque, with strong power, high reliability and low fuel
consumption. It is widely used in large-scale mineral exploitation and construction project and other working conditions.
| Overall dimension | |
| Overall width of upper assembly(A) | 2990mm |
| Overall width(B) | 3340mm |
| Overall height of cab(C) | 3190mm |
| Tail swing radius(D) | 3500mm |
| Overall height of engine hood(E) | 2700mm |
| Ground clearance of counterweight (F) | 1210mm |
| Wheelbase (G) | 4240mm |
| Crawler length (H) | 5180mm |
| Crawler gauge (I) | 2740mm |
| Crawler pad width (J) | 600mm |
| Min. ground clearance (K) | 500mm |
| Overall length (L) | 11020mm |
| Overall height of boom (M) | 3580mm |
| Overall parameters | |
| Bucket capacity | 2.0m³ |
| Overall operating weight | 40050kg |
| Max. excavation force | 236KN |
| Slew speed | 0-10.3r/min |
| Traveling speed (low/high) | 3.4/5.3km/h |
| Average ground pressure | 69.4kPa |
| Max. digging radius | 10610mm |
| Max. digging depth | 6850mm |
| Max. digging height | 10170mm |
| Max. dumping height | 7090mm |
| Min. front slewing radius | 4380mm |
| Engine | |
| Model | SD130A |
| Type | Water-cooled, Four-stroke,supercharged |
| Rated Power@Revolution Speed | 215kw/1700r/min |
| Displacement | 12800mL |
| Cylinder bore × stroke | 131*158mm |
| Emission standard | GB20891-2014 China Phase III |
| Traveling/swing system | |
| Qty. of carrier rollers (single side) | 2 |
| Qty. of track rollers (single side) | 9 |
| Traveling brake type | Wet disc brake |
| Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
| Swing brake type | Wet disc brake |
| Hydraulic system | |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | dual pump constant power negative flow control system |
| Max. flow | 2*300+25.5L/min |
| Main pump model | K3V180 |
| Operating pressure | 320/350kgf/cm2 |
| Main valve model | KMX32N |
| Arm cylinder - cylinder bore× diameter of piston rod × stroke | 1-175*115*1700mm |
| Boom cylinder - cylinder bore× diameter of piston rod × stroke | 2-160*105*1530mm |
| Bucket cylinder - cylinder bore× diameter of piston rod × stroke | 1-145*100*1285mm |
| Fill capacity | |
| Fuel | 620L |
| Engine oil | 45L |
| Hydraulic oil | 515L |
| Antifreeze | 2×6.8L |
| Swing reducer | 6.0L |
