Basic Info.
Model NO.
BM-3200
Transport Package
Iron Box
Trademark
myagro
Origin
Dezhou
Production Capacity
3000/Year
Product Description

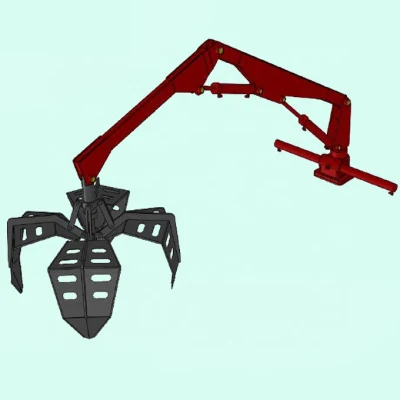

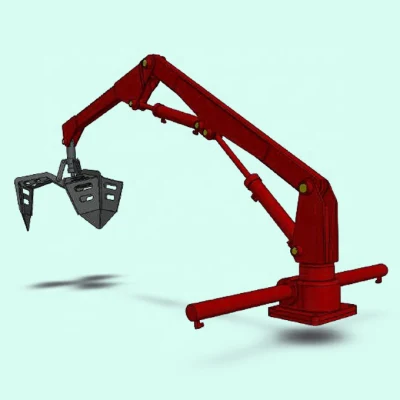

BM Series Grabber for palm fruit collecting hot in the oil palm planting area cause of its convinence and flexiblity.
We are famous Sunco, Professional Manufacture of Forestry machinery of grabbers for oil palm fruit harvesting work.

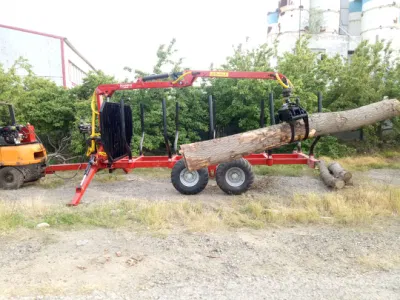

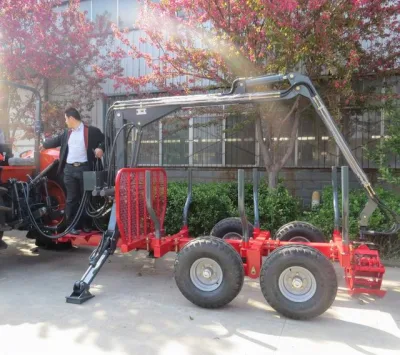

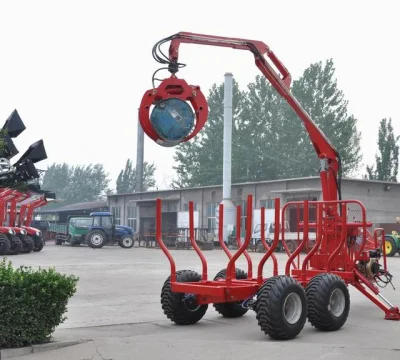

details for log trailer
We are famous Sunco, Professional Manufacture of Forestry machinery of grabbers for oil palm fruit harvesting work.
Models | BM2600 | BM3000 | BM3500 |
Max.outreach | 2.6m | 3m | 3.5m |
Matching Tractor | 20-25Hp | 30-45Hp | ≥50Hp |
Lifting capacity | 100kg | 130kg | 180kg |
Slewing angle | 220° | ||
Lifting Height | 2.6 | 3 | 3.5 |
Jaw Grabber Type | 4jaws | 4jaws | 4jaws |
Max jaw opening | 700mm | 1000mm | 1000mm |
details for log trailer
MY1002J | MY3002 | MY5004 | MY8004 | MY10006 | MY12006 | MY15006 | |
Mactching Power (hp) | 10-20 | 20-50 | 30-60 | 50-80 | 70-100 | 80-140 | 90-150 |
Machine Weight (kg) | 850 | 1010 | 1790 | 2040 | 2750 | 3000 | 3200 |
Rated Loading Capacity (T) | 1 | 3 | 5 | 8 | 10 | 12 | 15 |
Total Length of Trailer | 3.8-4.40 | 4.1 | 5.1 | 5.1 | 5.9 | 6.3 | 6.3 |
Total Width of Trailer | 1.35 | 1.4 | 1.6 | 1.8 | 2.2 | 2.3 | 2.5 |
Max. Arm Reach (m) | 3.7 | 3.5 | 4.3 | 6 | |||
Lifting Capacity/Arm Reach (kg/m) | 300/1.5 200/3.5 | 400/2 200/3.5 | 900/2 450/4.3 | 990/2 240/6 | |||
Rotating Angle (degree) | 200 | 370 | 400 | 400 | |||
Max. Grab Opening Width (mm) | 700 | 1140 | 1300 | 1430 | |||
| Power (Option): PTO / Gasoline Engine / Diesel Engine | ||||||
