Basic Info.
Model NO.
JG100SL
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Boom Length
4000mm
Arm Length
2100mm
Transport Package
Nude Packing
Specification
6500*2355*2935mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
Product Description

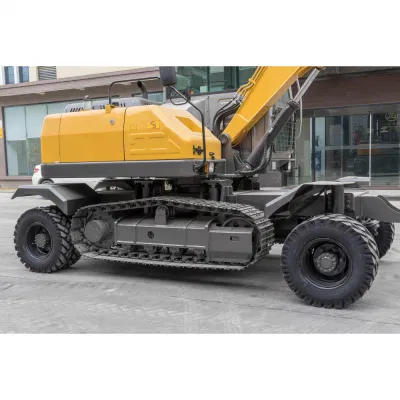

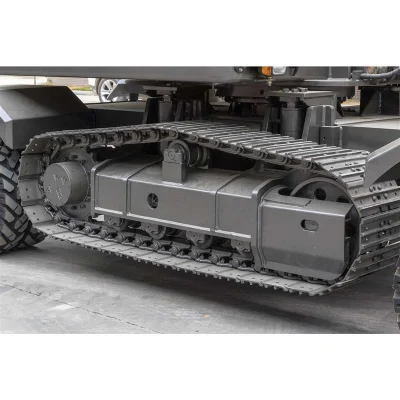

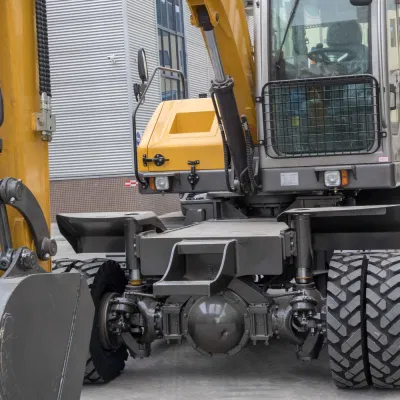

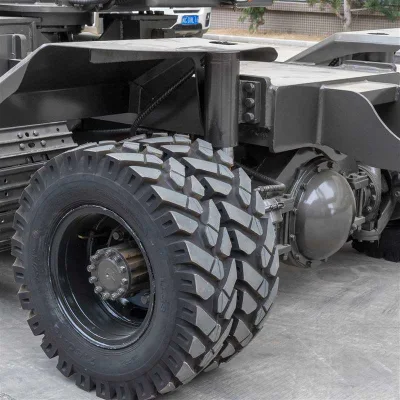

For JG100SL Crawler and Wheel excavator, we independently produced main parts like sub-frame, boom and arm. The superior steel material ensures a firm and durable machine structure.
We also brought in rotary motor, multi-tandem valve, plunger pump and dual-speed walking motor from South Korea, contributing to a smooth and quick operation. The entire working efficiency has been remarkably enhanced.
Optional Device
Workshop
Certificates
We also brought in rotary motor, multi-tandem valve, plunger pump and dual-speed walking motor from South Korea, contributing to a smooth and quick operation. The entire working efficiency has been remarkably enhanced.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 4000mm | ||||||||
| Arm length | 2150mm | |||||||||
| Maximum Digging Reach | 7000mm | |||||||||
| Maximum Digging Depth | 4500mm | |||||||||
| Maximum Digging Force | 60KN | |||||||||
| Maximum Digging Height | 6550mm | |||||||||
| Maximum Dumping Height | 4450mm | |||||||||
| Back-end radius of gyration | 2000mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6800*2260*2660mm | ||||||||
| Wheel base | 2320mm | |||||||||
| Track Gauge | 1750mm | |||||||||
| Width Of Crawler | 450mm | |||||||||
| Ground clearance of counterweight | 850mm | |||||||||
| Min ground clearance | 360mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 9000kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Hydraulic system working pressure | 24Mpa | |||||||||
| Hydraulic system flow | 158L/min+60L/min | |||||||||
| Variable piston pump | 2*36ml/r+28ml/r | |||||||||
| Rated Power | 62.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Max Hauling force | 58.5KN | |||||||||
| Walking speed(High speed/low speed) | 4.8/2.8km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Volume Of Bucket | 0.35m3 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 120L | |||||||||
