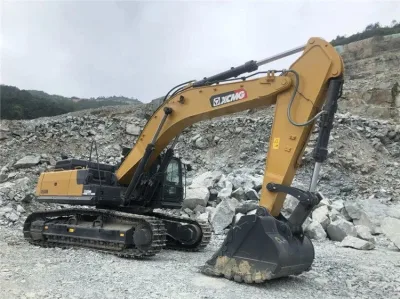

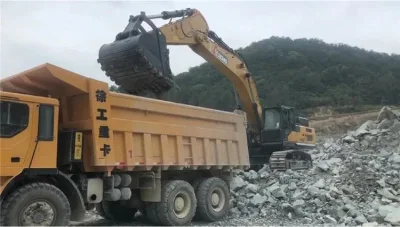

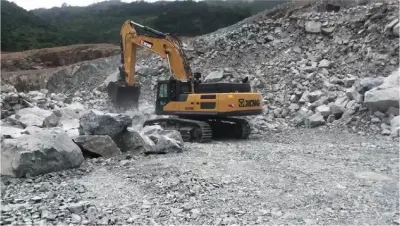

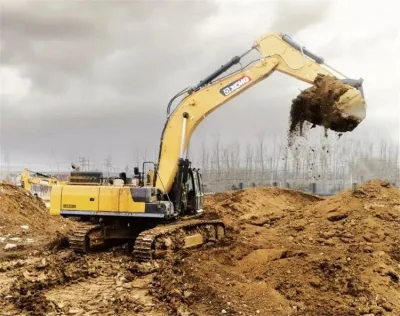

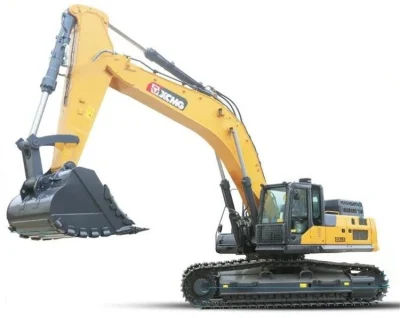

Earthmoving Machinery china 52ton crawler excavator XE520DK for sale
X's new-generation "DK-series" mine-based hydraulic excavators are energy-saving, efficient, comfortable and durable.The new hydraulic system is characterized by high efficiency, slightloss of pressureand reasonable flow distribution;the lengthened & widened chassis and heavy-load double-rib track shoeensure high stability of the vehicle during mine operations; the strengthened working deviceoptimizes hinged points and makes the vehicle to be with the most powerfuldigging force, meeting digging, truck loading, crushingand other requirements in heavy-load working conditions.
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
| Sales model | Unit | XE520DK | |
| Operating weight | Kg | 50200 | |
| Bucket capacity | m³ | 3.2-3.6 | |
| Engine | Model | / | 2206IIIN |
| No. of cylinders | / | 6 | |
| Output power | kw/rpm | 309.5/2100 | |
| Maximum torque/speed | N.m/rpm | 1896/1400 | |
| Displacement | L | 13 | |
| Main performance | Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 9.2 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 86 | |
| Bucket digging force | kN | 330 | |
| Arm digging force | kN | 235 | |
| Maximum traction | kN | 338 | |
| Hydraulic system | Rated flow of main pump | L/min | 2×360 |
| Main safety valve pressure | MPa | 34.3/37 | |
| Travel system pressure | MPa | 34.3 | |
| Rotary system pressure | MPa | 31 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 725 |
| Hydraulic tank capacity | L | 430 | |
| Engine oil capacity | L | 42 | |
| Appearance size | A Overall length | mm | 11755 |
| B Overall width | mm | 3572 | |
| C Overall height | mm | 4000 | |
| D Width of platform | mm | 3095 | |
| E Track length | mm | 5470 | |
| F Overall width of chassis | mm | 3572 | |
| G Track width | mm | 600 | |
| H Length to center of rollers | mm | 4407 | |
| I Track gauge | mm | 2740 | |
| J Counterweight clearance | mm | 1353 | |
| K Min. ground clearance | mm | 518 | |
| L Min. tail swing radius | mm | 3800 | |
| M Track height | mm | 1221 | |
| Working scope | A Max. digging height | mm | 9935 |
| B Max. dumping height | mm | 6830 | |
| C Max. digging depth | mm | 7230 | |
| D Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6885 | |
| E Max. vertical wall digging depth | mm | 4950 | |
| F Max. digging radius | mm | 10800 | |
| G Min. swing radius | mm | 4785 | |
| Standard configuration | Length of boom | mm | 6550 |
| Length of arm | mm | 3000 | |
| Bucket capacity | m³ | 3.2 | |
| Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | 2550 | |
| Bucket capacity | m³ | 2.6-3.6 | |
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What spare parts can you supply?
All kinds of spare parts of top brands, shantui,zoomlion,sinotruck,shacman,liugong,sdlg,lonking,xgma,etc.
