Basic Info.
Model NO.
XE215C
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
21500kg
Maximum Digging Height
9640 mm
Maximum Digging Depth
6655 mm
Machine Weight
21500kg
Max Digging Radius
9925 mm
Rated Speed
5.5/3.3km/H
Engine
Imported Diesel Isuzu(Bb-6bg1trp-01)
Rated Output Power
106.5/1950kw/Rpm
Overall Length
9, 520
Overall Width
2, 990
Overall Height
2, 985
Min. Ground Clearance
485
Total Displacement
6.494
Max. Vertical Digging Depth
5, 695
Max. Digging Radius
9, 925
Transport Package
Nude Packing
Specification
ISO
Trademark
ORIEMAC
Origin
Jiangsu, China
HS Code
84295212
Production Capacity
500/Month
Product Description

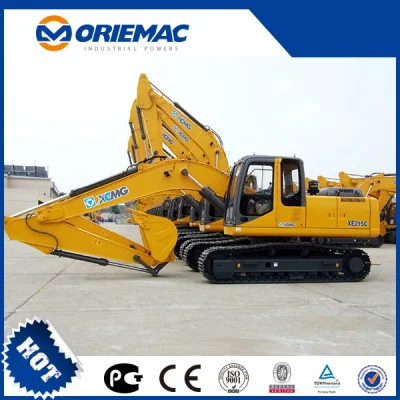

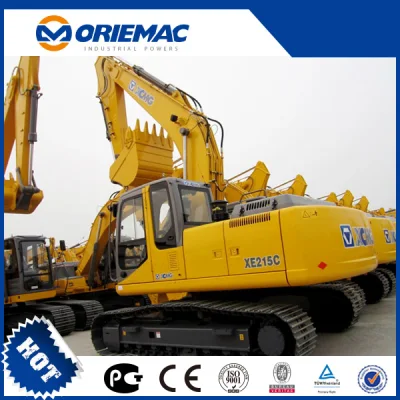

21.5ton Crawler XE215C excavator Feature
- The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
- The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
| Model | XE215C | ||
| Bucket capacity | m³ | 0.91 | |
| Standard bucket width | mm | ||
| Operating weight | kg | 2,1500 | |
| Dimension (in transportation) | Overall length | mm | 9,520 |
| Overall width | mm | 2,990 | |
| Overall height | mm | 2,985 | |
| Min. ground clearance | mm | 485 | |
| Engine | Model | ISUZU BB-6BG1TRP | |
| Total displacement | L | 6.494 | |
| Rated output power | KW/rpm | 106.5/1950 | |
| Digging performance | Max. digging height | mm | 9,640 |
| Max. dumping height | mm | 6,800 | |
| Max. digging depth | mm | 6,655 | |
| Max. vertical digging depth | mm | 5,695 | |
| Max. digging radius | mm | 9,925 | |
| Boom deflection angle: left/right | ° | ||
| Min. slew radius | mm | 3,530 | |
| Min. rear slew radius | mm | 2,750 | |
| Bucket digging force | kn | 138 | |
| Track type | Steel | ||
| Track width | mm | 600 | |
| Travel system | Track overall length | mm | 4,255 |
| Wheel base | mm | 3,462 | |
| Track gauge | mm | 2,390 | |
| Travel speed (Gear I/II) | km/h | 5.5/3.5 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 13.3 | |
| Bulldozing plate | Bulldozing plate (width) | mm | |
| Bulldozing plate (height) | mm | ||
| Lifting distance (GL up/down) | mm | ||
| Hydraulic pump type | Piston pump×2 | ||
| Fuel tank capacity | L | 360 | |
| Hydraulic oil tank capacity | L | 220 | |
