Basic Info.
Model NO.
CE220-6
Size
Large-Scale
Certification
ISO9001: 2000
Condition
New
Color
Orange
Function
Mining
Machine Weight
23t
Diesel Engine
B5.9-C
Power /Speed
125/2100
Fuel Tank Capacity
360L
Swing Type
Independenceopen Type
Operating Style
Pilot Control
Swing Speed
13.5r/Min
Travel Speed
5.32km/H
Transport Package
in Bulk
Specification
SGS
Trademark
kudat
Origin
China
Production Capacity
500PCS/Year
Product Description
Hydraulic excavator CE220-6
Main technical characteristic of hydraulic excavator CE220-6
Main Technology Data of Hydraulic Excavator CE220-6
Main Components of Hydraulic Excavator CE220-6
Working scope of hydraulic excavator CE220-6
Application of hydraulic excavator CE220-6
The hydraulic excavator CE220-6, as the design platform of the international cooperation, globalization's purchasing for kit, adopts the latest technology in the world to content customers' carping of the function, and the international general streamlined appearance wins the identification sense of customers. The CE220-6 with the outstanding performance, strong digging force, efficient productivity meets the mechanization construction such as the digging and the rock loading in the grade ~ soil.

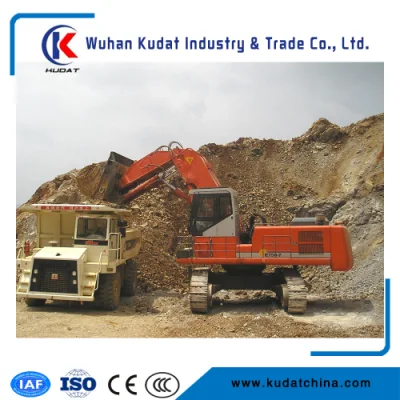

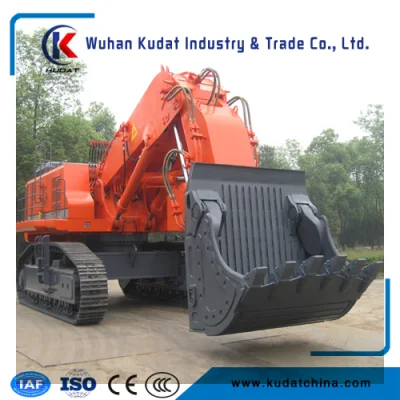

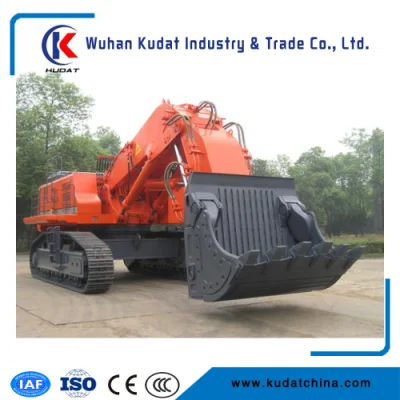

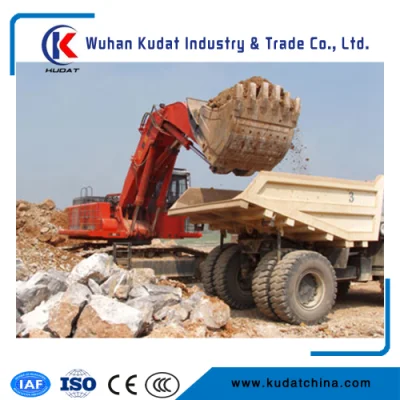

Detailed Images
After-sales Service Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
Company Overview
Main technical characteristic of hydraulic excavator CE220-6
| Turbo-charged after-cooled diesel engine: environment protecting, power saving, according to the emission of Europe Standard Grade.II The control of alternate power: reasonably distributing and using the diesel power The control technology of the negative flow: reducing the energy consumption greatly Systematic pressure: contenting the machine's the momentary overload Keeping the boom and stick's load Reviving the boom and stick's oil liquid, the confluence of two pump, raising the working efficiency The frequent-closed swing, the walking brake two gears changing the travel speed, meeting the requirement of the machine to move Integrated oil & water cooler with compact conformation Parker hose and seal, Busak+Shamban cylinder seal solving the problem of leaking oil thoroughly Case shape structure, attachment designed by CAD and the casting-welding structure realizing the high strength structure. The high strength and high steel platform and the undercarriage guaranteeing the powerful digging and walking The LCD liquid crystal show, automatic illumination, and the detection of the various pressure ,temperature and oil level to have sound-light alarm Three-dimensionally sending the wind, the fresh air cycle, environment protecting without the fluorine, automatically eliminating the frost, and the automatic air-condition with the high capacity. The operator's cab with the wide vision field and the streamlined appearance, matching the decoration and function with human nature, and offering the working environment in a car. Automatically injecting the fuel(Option) |
Main Technology Data of Hydraulic Excavator CE220-6
| No. | Item | Unit | Backhoe Date | |
| 1 | Machine weight | t | 23 | |
| 2 | Bucket capacity | Standard | m 3 | 1.0 |
| Range | m 3 | 0.6~1.3 | ||
| 3 | Diesel engine | Model | B5.9-C | |
| Power /Speed | kW/rpm | 125/2100 | ||
| Fuel tank Capacity | L | 360 | ||
| 4 | Hydraulic system | Max. pressure of main oil circuit | MPa | 29.4 |
| Max. flow of main oil circuit | L/min | 2×231 | ||
| Operating style | Pilot control | |||
| Hydraulic oil tank capacity | L | 240 | ||
| 5 | Performance | Swing speed | r/min | 13.5 |
| Travel speed | km/h | 3.52/5.32 | ||
| Max. pulling force | KN | 191 | ||
| Gradeability | % | 70 | ||
| Ground pressure | MPa | 0.053 | ||
| Circulating time of operation | s | 15 | ||
| 6 | Working date | Boom length | mm | 5850 |
| Stick length | mm | 2950 | ||
| Max. digging radius | mm | 10120 | ||
| Max. digging depth | mm | 6850 | ||
| Max. digging height | mm | 9350 | ||
| Max. unloading height | mm | 6510 | ||
| Max. digging force of stick | KN | 125 | ||
| Max. breakout force of bucket | KN | 125 | ||
| No. | Component | Type | Manufacturer |
| 1 | Diesel engine | B5.9-C169 | /America |
| 2 | Main pump | PVB110 | Toshiba Machinery/Japan |
| 3 | Main valve | UX28 | Toshiba Machinery/Japan |
| 4 | Swing motor and reduction | SG08E | Toshiba Machinery/Japan |
| 5 | Travel motor and reduction | GM35VL | Nabtesco/Japan |
| 6 | Armrest pilot valve | TH40K | Kawasaki/Japan |
| 7 | Foot pedal Pilot valve | RCV8CC | Kawasaki/Japan |
| 8 | Integration valve block | Shanghai EATON/China | |
| 9 | Hydraulic hose+ System seal | Parker/America | |
| 10 | Cylinder seal | Parker/America | |
| 11 | Air-condition system | Wuhan Jindong/China |
Application of hydraulic excavator CE220-6
The hydraulic excavator CE220-6, as the design platform of the international cooperation, globalization's purchasing for kit, adopts the latest technology in the world to content customers' carping of the function, and the international general streamlined appearance wins the identification sense of customers. The CE220-6 with the outstanding performance, strong digging force, efficient productivity meets the mechanization construction such as the digging and the rock loading in the grade ~ soil.
Detailed Images
After-sales Service Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
