Basic Info.
Model NO.
ZG3465LC-9C
Size
Medium-Sized
Certification
ISO9001: 2000
Condition
New
Operating Weight
34t
Max.Digging Depth
6995mm
Max.Digging Height
9612mm
Max.Dumping Height
9970mm
Diesel Engine
Cum.Mins 6ctaa8.3-C250
Rated Output
133kw/2200(Rpm)
Min.Ground Clearance
470mm
Transport Package
Nude Packing
Specification
12040*3340*3660mm
Trademark
Sinomach
Origin
China
HS Code
84295212
Production Capacity
1000units/Year
Product Description
34T Changlin ZG3465LC-9C Biggest Heavy Machine Excavator
1. The mechanical engine, strong power, low speed torque, low fuel consumption, high operating efficiency, reliable and durable;
2. Advanced load-sensitive control system, low energy consumption, fast response, precise control, small impact, and smooth
composite action;
3. The layout of the whole machine is scientific and reasonable, and the pipeline is neat and smooth, which greatly improves the
convenience of maintenance;
4. Rugged and durable enhanced working device with large digging force and wide working range;
5. The new cab is equipped with high-grade imported air conditioners and full-color LCD screens, which have broad vision, wide and
comfortable;
6. The new design, the tough lines, and the bright color stickers, the compact body is smart and stable.

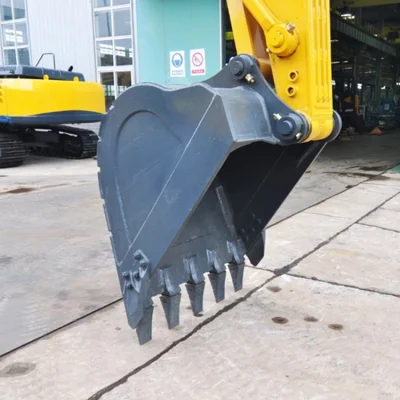

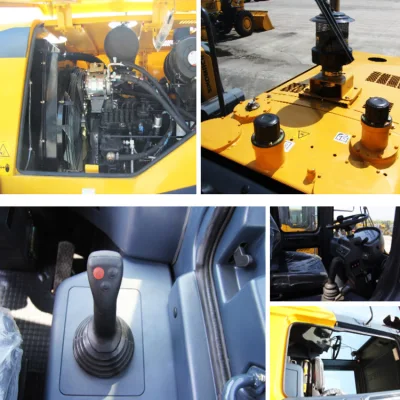

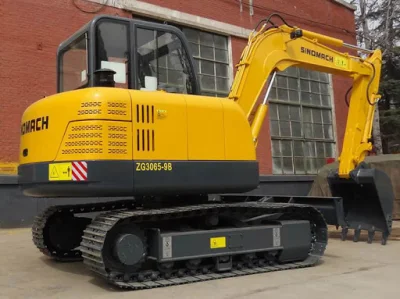

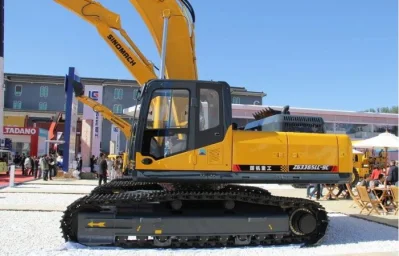

Detailed Images
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00kPqTOvIdlbgy/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00oIkEnSHhEcrO/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00qDcTOyICLkpn/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00qIbENJLBlczy/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
Why choose us
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00BPcTFaLIHquO/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00MPoEyfHlbkgn/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00vHoTFzLEgkgn/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00CPcEyHLaHouO/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00tTdEGUunTDip/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00BPkENcDKropn/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
![34t Changlin Zg3465LC-9c Biggest Heavy Machine Excavator](//img6.grofrom.com/www.bailemachineco.com/226f3j00MPqTFeHJkbpy/34t-Changlin-Zg3465LC-9c-Biggest-Heavy-Machine-Excavator.webp)
1. The mechanical engine, strong power, low speed torque, low fuel consumption, high operating efficiency, reliable and durable;
2. Advanced load-sensitive control system, low energy consumption, fast response, precise control, small impact, and smooth
composite action;
3. The layout of the whole machine is scientific and reasonable, and the pipeline is neat and smooth, which greatly improves the
convenience of maintenance;
4. Rugged and durable enhanced working device with large digging force and wide working range;
5. The new cab is equipped with high-grade imported air conditioners and full-color LCD screens, which have broad vision, wide and
comfortable;
6. The new design, the tough lines, and the bright color stickers, the compact body is smart and stable.
Performance Parameters
Overall Dimension | Overall length | 12040mm |
Overall width | 3340mm | |
Overall height of boom | 3660mm | |
Width of platform | 3215mm | |
Overall height of cab | 3314mm | |
Ground clearance of counterweight | 1230mm | |
Height of engine cover | 2888mm | |
Min.ground clearance | 560mm | |
Length of platform | 3605mm | |
Rear swing radius | 3450mm | |
Track wheel base distance | 4470mm | |
Chassis length | 5470mm | |
Chassis width | 3340mm | |
Track gauge | 2740mm | |
Standard width of track shoe | 600mm | |
Working Range | Max. digging reach | 7720mm |
Max. digging reach at groud level | 11830mm | |
Max. digging depth | 7862mm | |
Max. digging depth on ground | 7720mm | |
Max. vertical wall digging depth | 6691mm | |
Max. digging height | 10897mm | |
Max. dumping height | 7897mm | |
Min.swing radius | 4868mm | |
Specifications | Operating weight | 47300kg |
Standard bucket capacity | 2.25m3 | |
Arm length | 3050mm | |
Boom length | 5850mm | |
Diesel engine | Model | CUM.MINS QSM11-C375 |
Type | 4 stroke diesel engines | |
Power | 375(280)KW/2000rpm | |
Max. torque | 1898N.m at 1400rpm | |
No. of cylinders | 6 | |
Displacement | 129.2cc | |
Hydraulic system | Main pump: | |
Type | Variable displacement axial piston pump | |
Max. displacement | 200cc/rev*2 | |
Working pressure | 32.3/34.3Mpa | |
Hydraulic motor : | ||
Swing | Variable displacement axial piston motor | |
Travel | Variable displacement axial piston motor | |
Tank capacity | Fuel tank capacity | 680L |
Hydraulic tank capacity | 380L | |
Performance | Swing speed | 8.6rpm |
Max. travel speed H/L | Max. travel speed H/L | |
Gradeability | 35° | |
Max. digging force of bucket | 290KN | |
Max. digging force of arm | 228KN | |
Ground pressure | 0.8Kgf/cm2 |
