Basic Info.
Model NO.
HY8380
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Maximum Vertical Digging Depth
6731mm
Overall Dimension
11285mm*3190mm*3664mm
Machine Weight
6470mm
Superstructure Width
3000mm
Minimum Ground Clearance
490mm
Ground to Top of Counterweight Distance
2540mm
Maximum Dumping Height
7572mm
Number of Cylinder
6
Maximum Grade Ability
35 Degree
Emission Standard
China Stage II
Transport Package
Container or Nude
Specification
37T
Trademark
HYCM
Origin
China
HS Code
8429521200
Production Capacity
1000/Year
Product Description

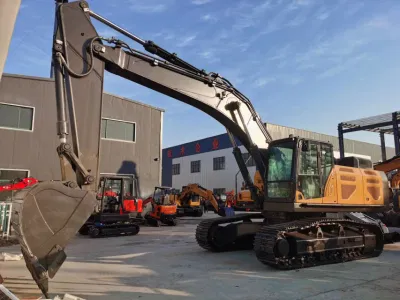

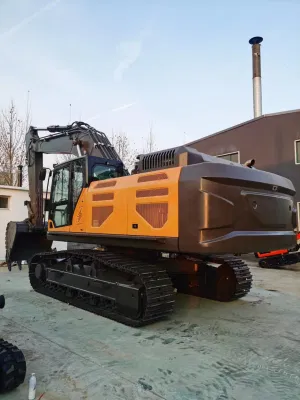

1. The crawler excavator is an large scale crawler excavator ,which matched CUMMINS engine with strong power and low noise and low consumption and environment protection.
2. Fitted china famous brand main pump and valves and swing motor.
3. Adopted imported driving motor.

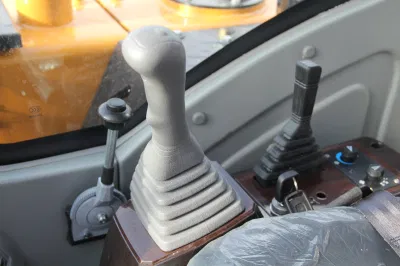

4. Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
5. The professional structural parts and working mechanism , ensure the machine has reliability and durability .
6. The breaking pipeline equipped improve the working performance .

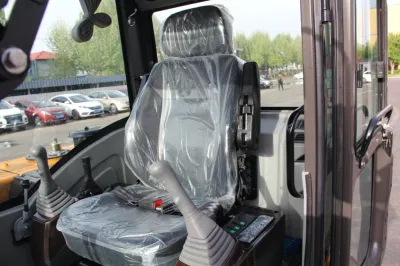

7. Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
8. The humanized design , ensure the machine can comfortable operation and convenient maintenance.
2. Fitted china famous brand main pump and valves and swing motor.
3. Adopted imported driving motor.
4. Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
5. The professional structural parts and working mechanism , ensure the machine has reliability and durability .
6. The breaking pipeline equipped improve the working performance .
7. Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
8. The humanized design , ensure the machine can comfortable operation and convenient maintenance.
| ENGINE | |
| Emission Standard | China Stage II |
| Make / Model | CUMMINS/6LTAA8.9-C325-II |
| Power /Rotation speed | 241kw(325HP)@200rpm |
| Number of cylinder | 6 |
| TRACK SYSTEM | |
| Maximum Travel speed(high/low) | 4.4/2.4km/h |
| Width of track shoe | 600mm |
| Number of upper roller per side() | 2 |
| Number of bottom roller per side() | 9 |
| PERFORMANCE PARAMETER | |
| Rock Bucket capacity | 1.9m³ |
| Swing speed | 11rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 244KN |
| Maximum Arm digging force | 200KN |
| Hydraulic system pressure | 35Mpa |
| Pilot pressure | 3.5-4Mpa |
| Machine weight | 37000kg |
| Fuel tank | 690L |
| Hydraulic oil tank | 400L |
| Boom length | 6470mm |
| Arm length(Broken only) | 3185mm |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 11285mm*3190mm*3664mm |
| Superstructure width | 3000mm |
| Track length on ground(Axle base) | 3700mm |
| Track gauge | 2590mm |
| Minimum Ground clearance | 490mm |
| Min.slewing radius at tail | 3590mm |

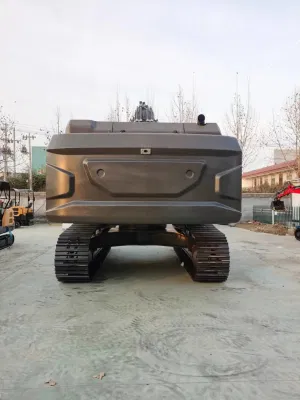

| Ground to top of Counterweight distance | 2540mm |
| WORKING RANGE | |
| Maximum Digging height | 10511mm |
| Maximum Dumping height | 7572mm |
| Maximum Digging depth | 7327mm |
| Maximum Vertical digging depth | 6731mm |
| Maximum Digging radius | 11178mm |
| Min.slewing radius | 3865mm |
