Basic Info.
Model NO.
CE480-8
Size
Large-Scale
Certification
ISO9001: 2000
Condition
New
Color
Orange
Function
Mining
Machine Weight
49t
Diesel Engine
M11-C330
Power /Speed
298/1800
Swing Type
Independenceopen Type
Operating Style
Pilot Control
Traveling Speed
5.2km/H
Bucket Capacity of Backhoe
2.5m3
Max. Pulling Force
353
Transport Package
in Bulk
Specification
SGS
Trademark
kudat
Origin
China
Production Capacity
500PCS/Year
Product Description
H ydraulic excavator CE4 8 0- 8
Main Technology Data of Hydraulic Excavator CE4 8 0- 8
Main Components of Hydraulic Excavator CE4 80-8

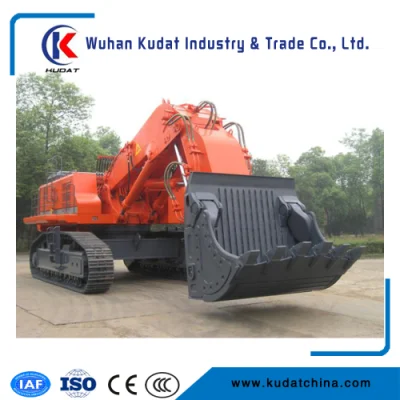

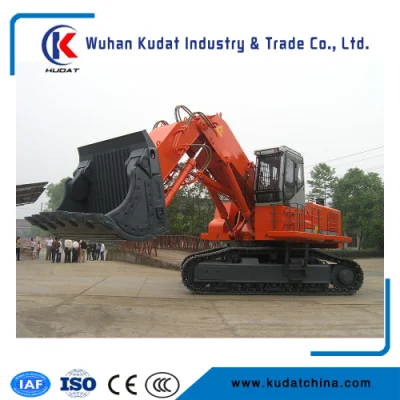

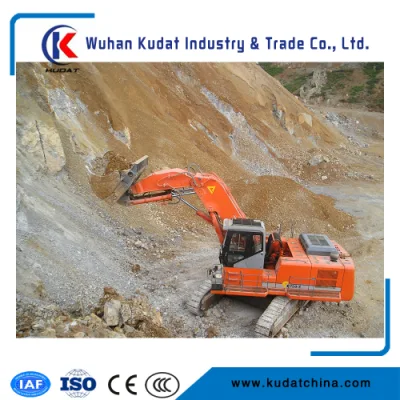

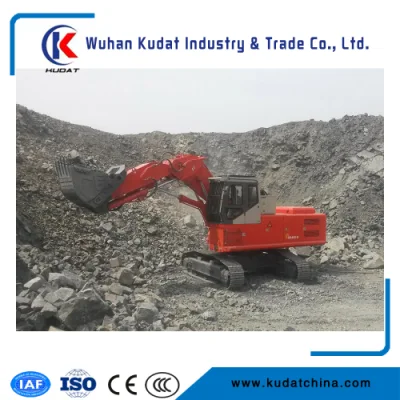

Detailed Images
After-sales Service Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
Company Overview
| ○ Turbo-charged after-cooled diesel engine: environment protecting, power saving, its satisfied the emission of Europe Standard Grade. ○ Control with constant power of single pump, crossover power of two pumps for reasonably distributing and using the power ○ Starting with zero displacement so as to reduce the moment of resistance at starting ○ Technique with pressure cut to protect hydraulic system and reduce the system heat ○ Secondary overloading for swing and normal closed brake for swing and travel ensure smoothly brake ○ Integrated oil& water cooler with compact conformation ○ The working attachment realized automatic level crowding with bucket to increase the bucket filling factor ○ Attachment designed by CAD, case shape and casting-welding structure realizing the high strength ○ Automatic central lubricating system to save daily lubrication ○ Multi-function meters show automatic illumination and detection of the various pressure ,temperature and oil level to have sound-light alarm ○ Better reliability with Parker hose &seals and Trelleborg cylinder seals ○ The Technique with disassembled undercarriage which is advanced to transport the machine quickly ○ Cab is provided with large tri-dimensional ventilation, fresh air circulation, large capacity air condition without fluorine ○ The operator's cab with the wide vision field and the streamlined appearance, matching the decoration and function with human nature, and offering the working environment in a car. |
Main Technology Data of Hydraulic Excavator CE4 8 0- 8
| No. | Item | Unit | Data | |
| Face shovel | ||||
| 1 | Machine weight | t | 49 | |
| 2 | Bucket capacity | m3 | 2.0-2.5 | |
| 3 | Diesel engine | Rated power | kW | 298 |
| Rated speed | r/min | 1800 | ||
| 4 | Hydraulic system | System pressure | MPa | 32 |
| Max. flow | L/min | 2×350 | ||
| 5 | Swing device | Swing speed | r/min | 7.3 |
| Swing pressure | MPa | 25.3 | ||
| 6 | Pilot system | System pressure | MPa | 4 |
| System flow | L/min | 21.5 | ||
| 7 | Traveling device | Traveling speed | km/h | 3.2/5.2 |
| Ground pressure | MPa | 0.1(560mm track pad) | ||
| Max. pulling force | kN | 353 | ||
| 8 | Working parameters | Boom specification | mm | 4100 |
| Stick specification | mm | 2700 | ||
| Bucket capacity of backhoe | m3 | 2.5 | ||
| Max. digging reach | mm | 8550 | ||
| Max. digging depth | mm | 2270 | ||
| Max. digging height | mm | 9920 | ||
| Max. dumping height | mm | 7370 | ||
| Max. digging force of stick | kN | 269 | ||
| Max. digging force of bucket | kN | 271 | ||
Main Components of Hydraulic Excavator CE4 80-8
| No. | Component | Specification | Qty | Manufacturer |
| 1 | Diesel engine | QSM11-C400 | 1 | America |
| 2 | Main pump | K3V280DT | 1 | Kawasaki/Japan |
| 3 | Main Valve | KMX32 | 1 | Kawasaki/Japan |
| 4 | Swing reduction gear | M5X250 | 1 | Kawasaki/Japan |
| 5 | Travel reduction gear | GFT80T3 | 2 | Rexroth /Germany |
| 6 | Swing roller plate | 014 45 1600 | 1 | Chengdu Tianma Electronic/China |
| 7 | Collecting ring | 1 | Hebei Huahai Machinery/China | |
| 8 | Controller cabinet | 1 | Chengdu GS Electric manufacturing/China | |
| 9 | Rubber hose | 1 | Parker/America | |
| 10 | Air-condition system | 1 | Wuhan Jindong /China |
