Basic Info.
Model NO.
SWCMH500
Type
Folding
Max. Lifting Height
12 M
Max. Working Radius
13.5 M
Hydraulic System
Kawasaki
Warranty
One Year
Color
Yellow
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84314990
Production Capacity
100 PCS / Year
Product Description
Product Description
Increased Engine Output
Engine output has been increased, compared to the predecessor models, giving the system more torque for more powerful and faster movement. Furthermore,load peaks are compensated cleverly, meaning maximum torque is available at all times for maximum handling capacity.
High Swing Torque
The separate hydraulic pump in the closed slewing circuit only supplies hydraulic fluid to the swing mechanism. The maximum delivery volume is thus available at any time for turning the uppercarriage
for fast and dynamic rotational movements.
Sensitive Hydraulics
The optimal harmonisation between the engine and the control valve allows a fast and direct response from the hydraulics to the input command. This is controlled proportionally to enable smooth and gentle movements to be executed when the joystick is moved.
Cabin with Ergonomic Design
The modern cab design provides excellent conditions for healthy, concentrated and productive work in maximum comfort. The colour touchscreen display, the controls and operator's seat Comfort are all coordinated to form a perfect ergonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.
Dual power (Electric power + Diesel power)
Motor power: 185hp
Diesel power: 270hp
Hydraulic transmission,
2.0 m³ clamshell bucket
A/C,
Optional: lifting magnet; five peel grab, sorting grab, log grapple etc.

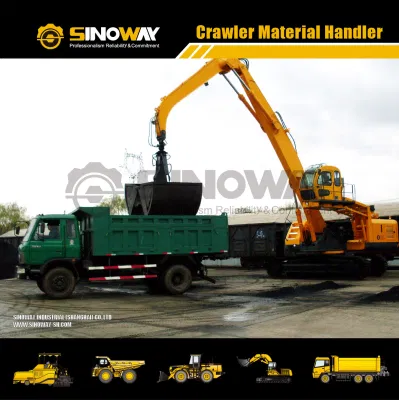

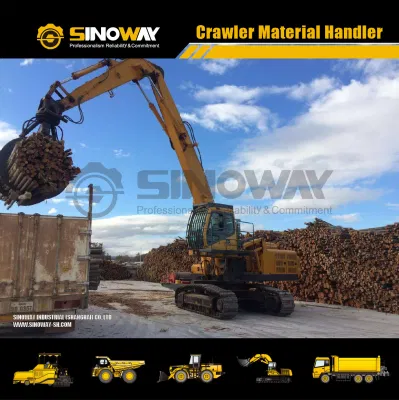

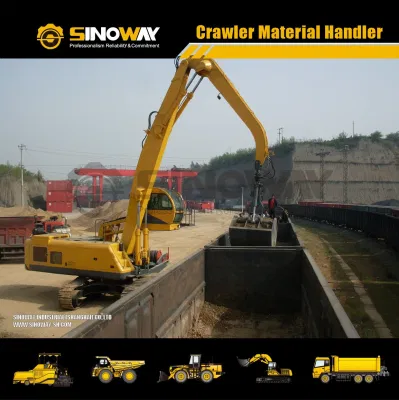

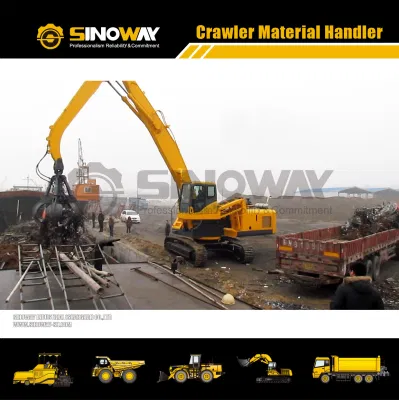

Product Show
Specifications
Working Scope
Lifting Performance Parameters
Length of the boom is optional, and the optimum proportion can be obtained according to the actual demand of the work.
Why Choose Us
Increased Engine Output
Engine output has been increased, compared to the predecessor models, giving the system more torque for more powerful and faster movement. Furthermore,load peaks are compensated cleverly, meaning maximum torque is available at all times for maximum handling capacity.
High Swing Torque
The separate hydraulic pump in the closed slewing circuit only supplies hydraulic fluid to the swing mechanism. The maximum delivery volume is thus available at any time for turning the uppercarriage
for fast and dynamic rotational movements.
Sensitive Hydraulics
The optimal harmonisation between the engine and the control valve allows a fast and direct response from the hydraulics to the input command. This is controlled proportionally to enable smooth and gentle movements to be executed when the joystick is moved.
Cabin with Ergonomic Design
The modern cab design provides excellent conditions for healthy, concentrated and productive work in maximum comfort. The colour touchscreen display, the controls and operator's seat Comfort are all coordinated to form a perfect ergonomic unit. In addition the ergonomic joysticks allow the machine operation to be both pleasant and precise.
Dual power (Electric power + Diesel power)
Motor power: 185hp
Diesel power: 270hp
Hydraulic transmission,
2.0 m³ clamshell bucket
A/C,
Optional: lifting magnet; five peel grab, sorting grab, log grapple etc.
Product Show
Specifications
| Dimensions | |
| Machine length | 13706m |
| Machine height | 3443mm |
| Machine width | 3340mm |
| Track length | 4947mm |
| Maximum lift height of the cab | 5143mm |
| Tail turning radius | 4412mm |
| Turntable height off the ground | 1293mm |
| Turntable width | 3265mm |
| Width of walking platform | 627mm |
| Transportation dimensions exclude width of the walking platform. | |
| The cap is optional: | Fixed cab / heightened cab / lift-able cab |
Working Scope
Lifting Performance Parameters
| Radius | 3.5 | 4.5 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.5 |
| Height | ||||||||
| Max. height | ||||||||
| 12.0 | ||||||||
| 10.5 | 6.0 | |||||||
| 9 | 5.8 | 5.0 | ||||||
| 7.5 | 7.0 | 5.8 | 4.8 | |||||
| 6.0 | 9.0 | 6.8 | 5.6 | 4.7 | 4.0 | |||
| 4.5 | 15.0 | 11.0 | 8.5 | 6.8 | 5.6 | 4.7 | 3.8 | |
| 3.0 | 10.0 | 8.0 | 6.6 | 5.4 | 4.5 | 3.8 | ||
| 1.5 | 9.0 | 7.0 | 6.6 | 5.4 | 4.5 | 3.6 | 3.5 | |
| 0 | 6.4 | 5.2 | 4.2 | 3.6 | ||||
| -1.5 | 6.2 | 5.2 | 4.2 | 3.5 | ||||
| -3.0 | 6.0 | 5.0 | 4.0 | |||||
| Max. depth |
Length of the boom is optional, and the optimum proportion can be obtained according to the actual demand of the work.
| Technical Parameters | |
| Power | |
| Engine | 206kw |
| Electric motor | 132kw |
| Fuel tank | 330L |
| Walking System | |
| Walking speed | 2.5/4.2km/h |
| Max. traction force | 228KN |
| Grade ability | 30% |
| Hydraulic System | |
| Max. flow | 2 x 320L/min |
| Max. working pressure | 31MPa |
| Hydraulic oil tank | 396L |
| Pilot pressure | 3.8MPa |
| Main Performance Parameters | |
| Total weight | 50t |
| Max. lifting moment | 60t.m |
| Max. swing speed | 8r/min |
| Max. swing torque | 110KN.m |
