Basic Info.
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wooden
Specification
all
Trademark
JL PARTEXP
Origin
China
Production Capacity
100
Packaging & Delivery
Package Size
450.00cm * 280.00cm * 450.00cm
Package Gross Weight
5500.000kg
Product Description

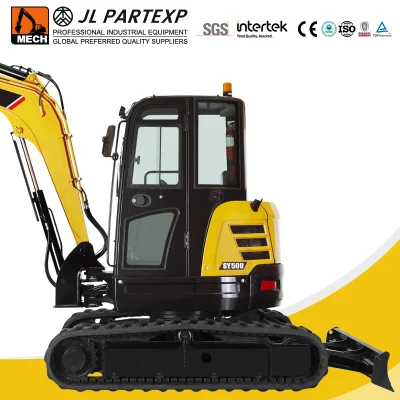

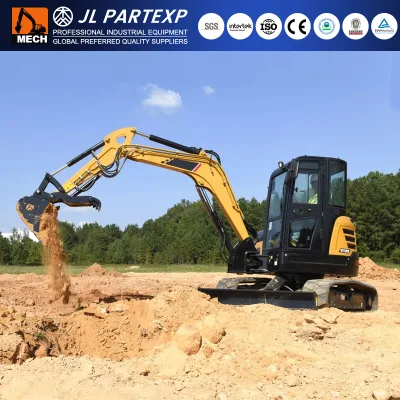

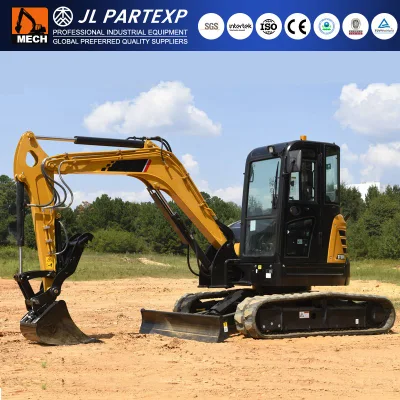

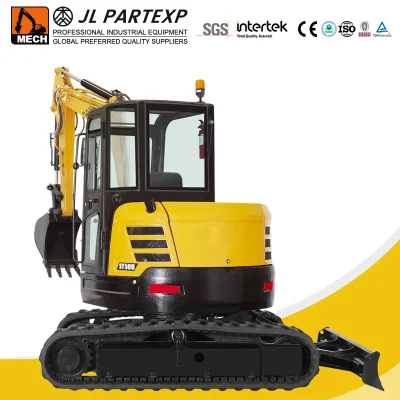

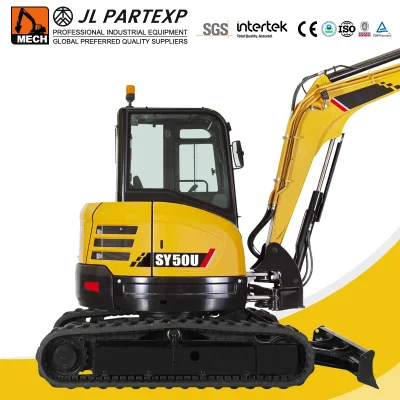

SY50U Mini Excavator
Coming in at under 12,000 lbs, the compact and powerful SY50U allows for easy transport from job to job while maximizing your productivity. Landscapers, general construction builders, farmers and utility contractors appreciate the power-to-weight ratio of this machine. With a swing boom, true zero tail swing and rubber tracks, this compact excavator is built to work in tight spaces and minimize the impact on finished surfaces.
Operators stay comfortable all day in the spacious, climate-controlled cab, with high visibility of the jobsite. Designed with ground-level easy-access service points to increase efficiency during routine maintenance. Backed by the industry's strongest standard warranty of 5 years/5,000 hours, the SY50U delivers maximum value.
·Swing boom
·True zero tail swing
·Primary and secondary auxiliary circuits
·Quick-coupler plumbing to the end of the stick
·Pilot controls with pattern change valve
·Load sensing hydraulics
·Cylinder guards for increased protection
·16″ rubber tracks
·Bright LED lighting package
·Powerful and reliable Yanmar engine
Coming in at under 12,000 lbs, the compact and powerful SY50U allows for easy transport from job to job while maximizing your productivity. Landscapers, general construction builders, farmers and utility contractors appreciate the power-to-weight ratio of this machine. With a swing boom, true zero tail swing and rubber tracks, this compact excavator is built to work in tight spaces and minimize the impact on finished surfaces.
Operators stay comfortable all day in the spacious, climate-controlled cab, with high visibility of the jobsite. Designed with ground-level easy-access service points to increase efficiency during routine maintenance. Backed by the industry's strongest standard warranty of 5 years/5,000 hours, the SY50U delivers maximum value.
·Swing boom
·True zero tail swing
·Primary and secondary auxiliary circuits
·Quick-coupler plumbing to the end of the stick
·Pilot controls with pattern change valve
·Load sensing hydraulics
·Cylinder guards for increased protection
·16″ rubber tracks
·Bright LED lighting package
·Powerful and reliable Yanmar engine
TOP FEATURES
The piston pumps with a variable flow rate ensure sufficient power to carry out all operations smoothly and safely. The well-balanced combination of speed, power and precise response behaviour guarantees high cost-effectiveness with fuel in every phase: The hydraulic pump always delivers just enough oil as is actually needed.
• The Engine on a SY50U is a Yanmar 4TNV88C with a Tier 4 certification.
• SY50U excavators have excellent cab space, wide visibility, and easy access to controls to maximize operator comfort.
• SY50 compact excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance.
• Standard features on the SY50 mini excavator include auxiliary hydraulics and a pattern-control change valve.
• Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.
HIGH-PERFORMANCE ENGINE
The SY50U boasts a tier 4 Yanmar final power plant. The engine on the SY50U also uses an advanced SLSS hydraulic system. This mini excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the SY50U reduce fuel consumption during operation.
SERVICING ACCESSIBILITY
Access with EaseSY50U has easily accessible service points and a detachable radiator screen. These features make scheduled maintenance on this mini excavator super easy and convenient.
It provides easy access to all points necessary for checking and maintenance work straight from the ground. This means that planned maintenance can be carried out quickly from groundlevel, which increases the machine's availability and service life and ensures that both the operators and the equipment are reliably protected in the long term.
ZERO TURN SWING RADIUS
Zero Turn & Independent Boom
• With a zero tail swing radius and independent boom swing the SY50U allows for operation in extremely confined spaces. This mini excavator can go places that were previously inaccessible!
UPGRADED CAB - NEW EXPERIENCE
Innovative Large Cab
The SY50U Excavator boasts a large cab equipped with an adjustable suspension seat. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks on this compact excavator are designed and arranged according to ergonomics. In other words, the excavator can be operated quite easily! Each operation button is easily within the reach of the operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increases the cab stability of the SY50U, while improving operator comfort.
Luxurious Mechanical Damping Seat
The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
ONE MACHINE for MULTIPLE PURPOSES
The cab is standard, and the canopy is optional to cope with low working conditions.
Two-way auxiliary pipelines are standard, and various attachments can be selected according to actual needs to easily handle digging, grabbing, unloading, drilling, cutting, crushing and other working conditions.
The auxiliary pipeline is equipped with a ball valve, which is convenient for customers to cut off the oil circuit when selecting accessories to prevent environmental pollution.
1.Soil improvement
2.Scrap Screening
3.Wide Bucket Construction
4.narrow bucket construction
5.Trench digging
6.Loading and Slope Construction
7.hard soil excavation
Two-way auxiliary pipelines are standard, and various attachments can be selected according to actual needs to easily handle digging, grabbing, unloading, drilling, cutting, crushing and other working conditions.
The auxiliary pipeline is equipped with a ball valve, which is convenient for customers to cut off the oil circuit when selecting accessories to prevent environmental pollution.
1.Soil improvement
2.Scrap Screening
3.Wide Bucket Construction
4.narrow bucket construction
5.Trench digging
6.Loading and Slope Construction
7.hard soil excavation
TECHNICAL SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | DIMENSIONS | |||||
| Operating Weight | 11,684 lb | 5 300 kg | Boom Length | 8' 10" | 2 700 mm | |
| Ground Pressure | 4.6 psi | 31.6 kPa | Stick (Arm) Length | 4' 11" | 1 500 mm | |
| Engine | Yanmar 4TNV88C-PSY2 | A Transport Length | 17' 8" | 5 390 mm | ||
| Displacement | 134.3 in3 | 2.2 L | B Transport Width | 6' 5" | 1 960 mm | |
| Gross Power | 39 HP | 29.1 kW | C Transport Height | 8' 8" | 2 630 mm | |
| Hydraulics | Load Sensing with Pilot Control | D Upper Structure Width | 5' 9" | 1 760 mm | ||
| Main Hydraulic Pump | Axial Piston - Variable Displacement | E Blade Height | 13" | 330 mm | ||
| Operating Flow (maximum) | 29.1 gal/min | 110.0 L/min | F Track Width (standard shoe) | 16" | 400 mm | |
| Operating Pressure (maximum) | 3,553 psi | 24.5 MPa | G Track Gauge | 5' 1" | 1 560 mm | |
| Primary Auxiliary Flow (maximum)* | 18 gal/min | 70 L/min | H Ground Clearance (minimum) | 13" | 325 mm | |
| Primary Auxiliary Pressure (maximum) | 3,626 psi | 25 MPa | I Tail Swing Radius | 3' 3" | 980 mm | |
| Secondary Auxiliary Flow (maximum)* | 12 gal/min | 45 L/min | J Track Length on Ground | 6' 6" | 1 990 mm | |
| Secondary Auxiliary Pressure (maximum) | 3,626 psi | 25 MPa | K Track Length | 8' 3" | 2 510 mm | |
| Travel Motor | Axial Piston with Park Brake | |||||
| Travel Pressure (maximum) | 3,553 psi | 24.5 MPa | SERVICE REFILL CAPACITIES | |||
| Travel Speeds (maximum) | 1.7 / 2.5 mph | 2.7 / 4.0 km/hr | Fuel Tank Capacity | 20.6 gal | 78.0 L | |
| Travel Effort (maximum) | 9,150 lbf | 40.7 kN | Hydraulic Tank Capacity | 13.7 gal | 52.0 L | |
| Grade Capability (maximum) | 35° | Engine Oil Capacity | 2.0 gal | 7.4 L | ||
| Swing Motor | Axial Piston with Swing Brake | Cooling System Capacity | 1.1 gal | 4.2 L | ||
| Swing Pressure (maximum) | 2,770 psi | 19.1 MPa | You can communicate with us directly to obtain high-quality customized services!!! >>> | |||
| Swing Speed (maximum) | 10 RPM | |||||
| Undercarriage (standard) | Belted Rubber Track | |||||
| Track Shoe width (standard) | 16" | 400 mm | ||||
| Track Rollers (per side) | 4 | |||||
| Carrier Rollers (per side) | 1 | |||||
| WORKING RANGE | ||
| Boom Length | 8' 10" | 2 700 mm |
| Stick (Arm) Length | 4' 11" | 1 500 mm |
| A Maximum Digging Height | 17' 11" | 5 450 mm |
| B Maximum Dumping Height | 12' 6" | 3 805 mm |
| C Maximum Digging Depth | 11' 3" | 3 420 mm |
| D Maximum Vertical Wall Digging Depth | 8' 1" | 2 460 mm |
| E Maximum Reach at Ground Level | 19' 3" | 5 880 mm |
| F Minimum Swing Radius | 8' 3" | 2 520 mm |
| DIGGING PERFORMANCE | ||
| Boom Length | 8' 10" | 2 700 mm |
| Stick (Arm) Length | 4' 11" | 1 500 mm |
| Bucket Breakout Force (ISO) | 7,306 lbf | 32.5 kN |
| Stick (Arm) Digging Force (ISO) | 5,148 lbf | 22.9 kN |
