Basic Info.
Drive Type
Internal Combustion Drive
Bucket Capacity
0.07m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Maximum Bucket Digging Force
18kn
Machine Weight
2000kg
Overall Dimension (L*W*H)
3555mm*1300mm*2290mm
Maximum Unloading Height
2430mm
Track Gauge
760mm
Maximum Digging Height
3700mm
Maximum Digging Depth
2400mm
Maximum Vertical Digging Depth
2025mm
Maximum Travel Speed
4km/H
Emission Standard
Tier 5
Power /Rotation Speed
14.1kw(20HP)@2000r
Hydraulic System Pressure
21.5MPa
Swing Speed
9 Rpm
Min.Ground Clearance
150mm
Transport Package
3635X1350X2370
Specification
3635x1350x2370
Trademark
Walker
Origin
China
HS Code
84295212
Production Capacity
3000/Year
Product Description

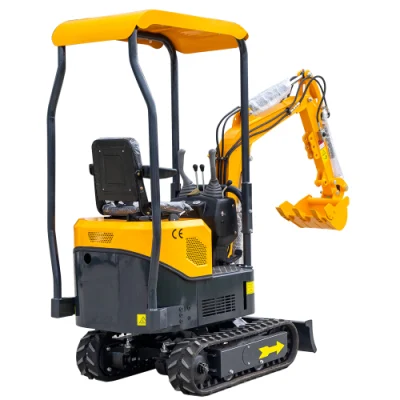

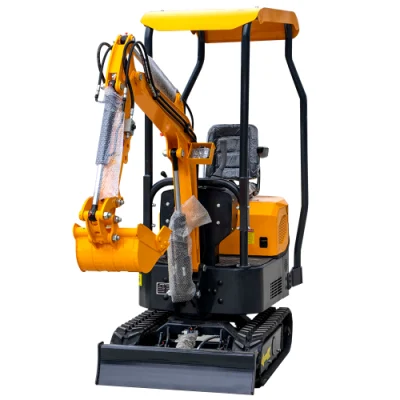

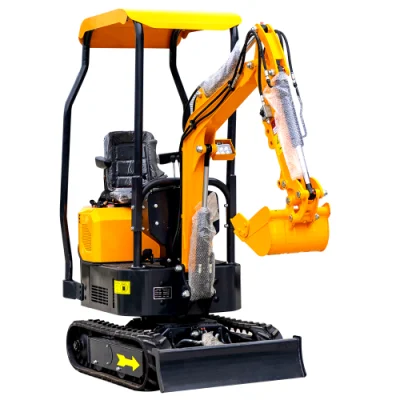

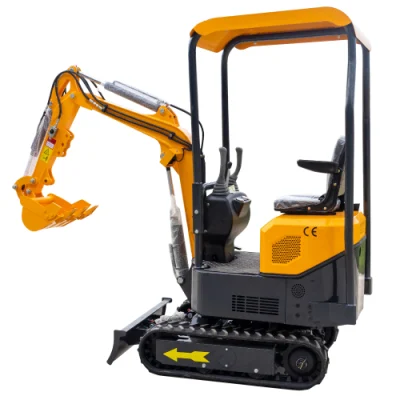

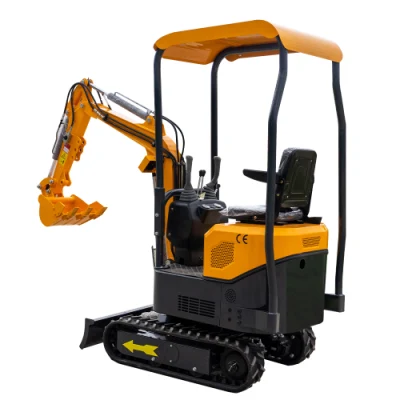

China famous brand HT 800kg 1000kg 1500kg 1.7ton 2.0ton mini excavator Hydraulic Diesel Electronic Flexible Basis Swing Boom EPA4 CE For Farm Constructon Small
Product Description
Mini Small Digger Excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, simple design, easy to maintain.
Feature:
1. The easy operation and convenient operation device are in line with the new generation human engineering working environment.
2. The engine has the features of strong power, low noise, low emission, low fuel consumption, and convenient maintenance etc. Its performance, noise, emissions are all up to the highest level in Europe.
3. The strengthened crawler enhances the wear resistance of the track effectively and prolongs the service life of the track at the same time,
4. Reasonable hydraulic layout greatly facilitates the inspection and maintenance of hydraulic system.
5. The precise instrument is the intelligent monitoring housekeeper of the excavator.
Product Parameter
| ENGINE | |
| Emission Standard | Tier 5 |
| Make | KUBOTA |
| Model | D1105 |
| Power /Rotation speed | 14.1kw(20HP)@2000rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 4km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*1300mm*2290mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 760mm |
| Min.Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
Package
Packed in wooden case
Delivery Time:15-20 Days after pre-paid
Payment:30% pre-paid and pay-off before shippment
Details Display
Company Profile
Laizhou Wanding Machinery Co., Ltd. is located in Laizhou City, Shandong Province China, is the domestic production of construction machinery and engineering machinery backbone enterprises.Strong technical force, has many years engaged in mechanical design and development of professionaland technical personnel and high-quality management personnel, in the mechanical design andmanufacturing, has accumulated a wealth of industry experience.
Characteristics of the company took the lead through the IS09001: 2008 international quality,self-loading concrete mixer truck cation, established a strict quality inspection system, with advanced equipment and testing instruments, the main design and development of ZL series loaders, dump trucks,wood fork machine, with reasonable design, low energy consumption, high efficiency, easy operation andmaintenance and so to meet the different requirements of customers, products sell well in more than 20provinces and cities in the country, and some products are exported to Africa, Southeast Asia, Russia,Mongolia and other countries and regions, , with first-class products, the best reputation and quality services in the industry prestigious, users of all ages.
Company is willing to "high quality, low price, service" business policy, to "re contract, credibility" business principles, to "open up, innovation, the pursuit of excellence" spirit of enterprise,continuous improvement process, improve product performance, improve product quality, and new and old customers from all walks of life in the economic construction and into, create brilliant .
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of WALKER?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.
Our factory is passed ISO9000
6.What kind of service can we get from WALKER?
If there is any using problem, we can provide online or video guidance.
If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site.
Our service department has no holiday, always stand by for you and respond within 5 hours.
