Basic Info.
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Rate Power
22 Kw
Battery Capacity
105kw
Electric Motor
Tz210xs22
Transport Package
Naked
Trademark
Kuangan
Origin
Shandong
Production Capacity
500/Year
Product Description

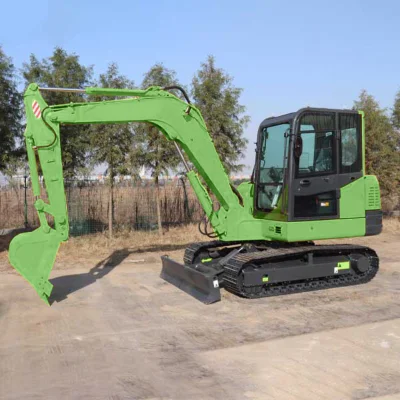

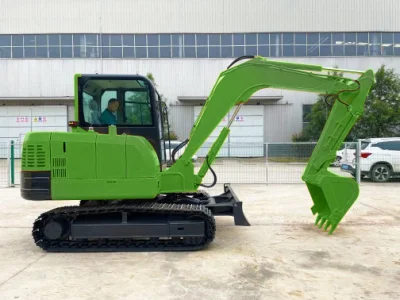

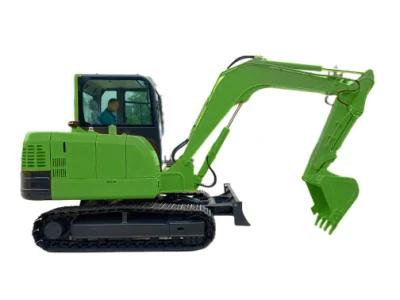

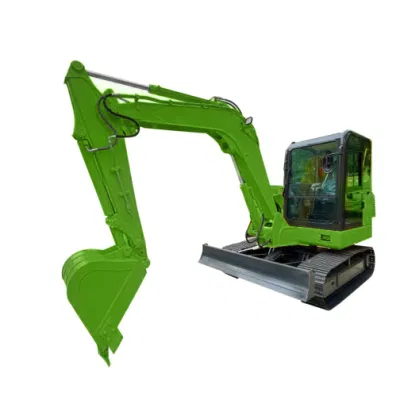

China Electric Excavator 6 ton for sale KA60E is one purely electric powered excavator, with zero emissions, no pollution, high efficiency, low noise,
less maintenance and other characteristics, "fast charging speed, long range, a good solution
to the power and pollution problems in construction
| ME60EV | |
| Machine weight (T) | 6 |
| Bucket capacity (m3) | 0.22 |
| Electric motor model | TZ210XS22 |
| Power (kw/r/min) | 22/2000 |
| Battery capacity | 105KWh |
| Voltage | 350V |
| Traveling speed (km/h) | 4.2/2.2 |
| Swing speed r/min) | 9.5 |
| Gradeability (%) | 70 |
| Bucket digger force (KN) ISO | 42 |
| Ground pressure (KPa) | 33.5 |
| Hyudraulic pump model | HP5V70 |
| Max flow(L/min) | 140 |
| Working pressure (MPa) | 25 |
| Hydraulic oil tank capacity (L) | 80 |
| A-Length (mm) | 5960 |
| B-Width (mm) | 1960 |
| C-Height (Boom top)(mm) | 1995 |
| D-Height (Cab top)(mm) | 2580 |
| E-Counterweight ground clearance (mm) | 700 |
| F--Min ground clearance (mm) | 360 |
| G-Turning radius of vehicle tail (mm) | 1700 |
| H-Track length on the ground (mm) | 2000 |
| J-Track shoe length (mm) | 2560 |
| K-Track gauge (mm) | 1560 |
| L--Track width (mm) | 1960 |
| M-Track shoe width (mm) | 400 |
| N-Swing frame width (mm) | 1906 |
| O-Max digging height (mm) | 5750 |
| P-Max dumping height (mm) | 3980 |
| Q-Max digging depth (mm) | 3860 |
| R--Max vertical wall digging depth (mm) | 3040 |
| T-Max digging reach | 6170 |
| U--Max digging reach at ground level (mm) | 6045 |
| V-Min swing radius (mm) | 2380 |
| W-Max height at min swing radius (mm) | 4395 |
| X-Distance from swing center to tail mm) | 1700 |
| Z-Counterweight height (mm) | 1685 |
| A1--Ground length (during transporting) (mm) | 3370 |
| Dipper arm mm) | 1630 |
| Boom (mm) | 3000 |
Product details
