Basic Info.
Model NO.
JG230Z
Drive Type
Internal Combustion Drive
Bucket Capacity
Customized
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1 Set
Attachments
Bucket,Drill, Hammer, Various Kinds of Clamps
Feature
Mature Technology
Transport Package
Nude Packing
Specification
14500*2750*3200mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000units/ Year
Product Description

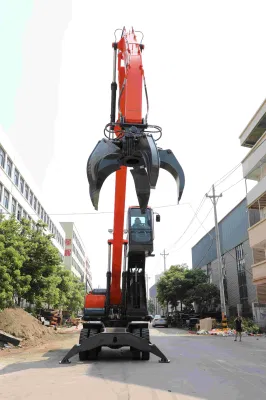

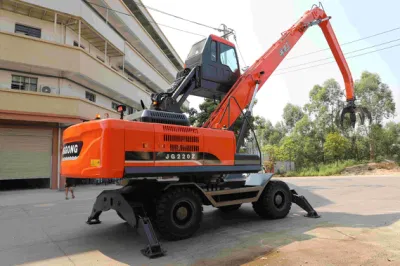

JG-Z Series 15-26 Ton Mobile Material Handler Wheel Excavator
JG-Z Series Mobile Material Handler is installed with 124KW turbocharged engine and
360°rotary grab,realizing a grab capacity of 2.5-3 tons. It can be used for loading and unloading
in wood mills, sugar cane fields, stone factories, scrap iron plants, etc. It has a unique 360°
rotating stall that is reliableand durable.
The equipped bulldozer greatly improves the stability and stability of the working state of the
whole machine
360°rotary grab,realizing a grab capacity of 2.5-3 tons. It can be used for loading and unloading
in wood mills, sugar cane fields, stone factories, scrap iron plants, etc. It has a unique 360°
rotating stall that is reliableand durable.
The equipped bulldozer greatly improves the stability and stability of the working state of the
whole machine
| SPECIFICATION OF JG220Z GRAPPLE EXCAVATOR | |
| RangeofOperation | |
| Boomlength | 9000mm |
| Armlength | 6000mm |
| MaximumDumpingHeight | 15000mm |
| FarthestGrabingDistance | 15000mm |
| Back-endradiusofgyration | 3000mm |
| Dimensions | |
| (Length*width*height)TransportDimensions | 14500*2750*3200mm |
| Axlebase | 3300mm |
| Wheelbase(front/rear) | 1950mm |
| Groundclearanceof | 1325mm |
| Min ground clearance | 310mm |

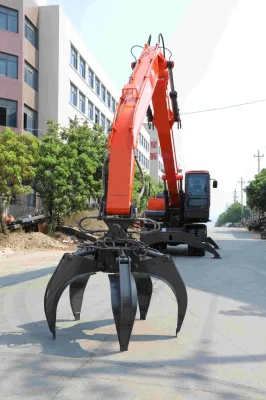

| SPECIFICATIONOFORANGEPEELGRAPPLE | |
| Angleofrotation | 360° |
| WeightofGrab | 800Kg |
| Max.OpeningWidthofGrab | 1600mm |
| Closingdiam | 500mm |
| Techperformanceandspecification | |
| Angleofrotation | 360° |
| Machineweight | 24000kg |
| RatedPower | 124KW |
| RatedSpeed | 2000r/min |
| Volumeofbucket | 1.1m3 |
| Hydraulicsystemworking | 32Mpa |
| Hydranlicsystemflow | 450L/min |
| Walkingspeed | 25km/h |
| FqtFuelQuantity | ≥12L/h |
with 20 years of excavator manufacturing experience.Our company mainly produces wheeld excavator, crawler excavator,
grapple excavator, railway machine, sugarcane combine harvester
As the professional level of users is getting higher and higher, in order to meet the customer's demand for products, Jingong Machinery constantly innovates and upgrades the products, and optimizes and improves the products from
the professional perspective of future development.
Since its establishment in 1997, Jingong has always been adhering to the business philosophy of "survive by quality,
rely on efficiency through management", put customers first, and develop and manufacture products that are popular
in the market.
QuanZhou Jingli Construction Machinery Co., Ltd. is located in Quanzhou, Fujian Province, a famous hometownof overseas Chinese in Southern Fujian Province. It was founded in 1997. Is a design and development, production
and sales of technology-based companies. The company is equipped with all kinds of imported large-scale processing
equipment, professional technical research and development team and excellent management team.
The company has a complete set of product quality management system, and has many years of experience
in R & D and manufacturing.
The company insists on leading the development of enterprises with scientific and technological innovation,
and maintains a good cooperative relationship with domestic key universities.

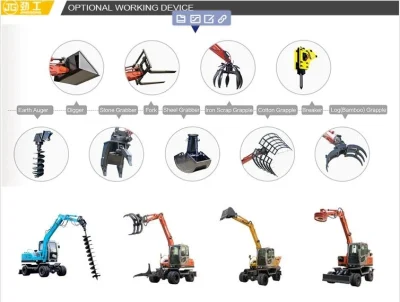

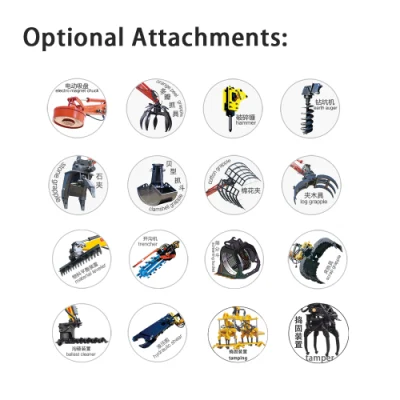

We provide more optional parts to complete more kinds of work. We provide a variety of work toolssuch as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety
of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are
arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby r
educing the time, parts and costs required for installing work tools.
