Basic Info.
Drive Type
Internal Combustion Drive
Bucket Capacity
0.07
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wooden
Specification
all
Trademark
JL PARTEXP
Origin
China
Production Capacity
100
Packaging & Delivery
Package Size
300.00cm * 180.00cm * 300.00cm
Package Gross Weight
3000.000kg
Product Description

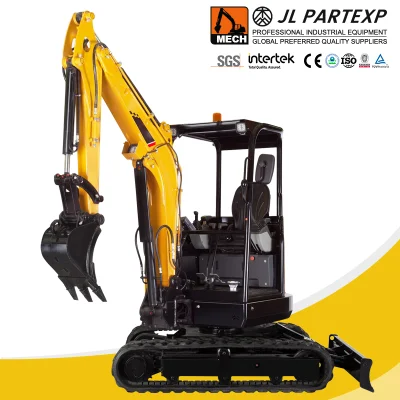

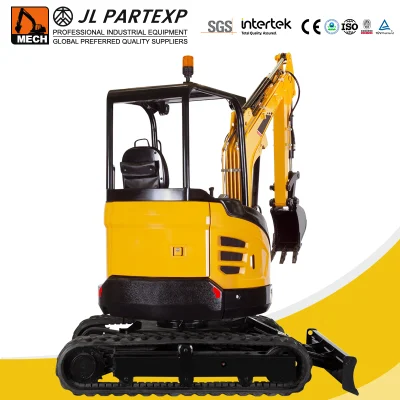

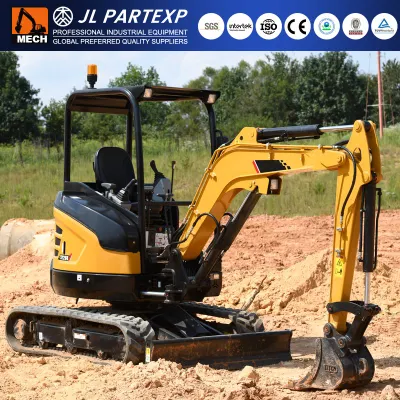

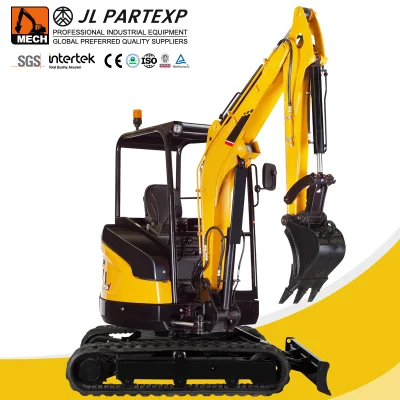

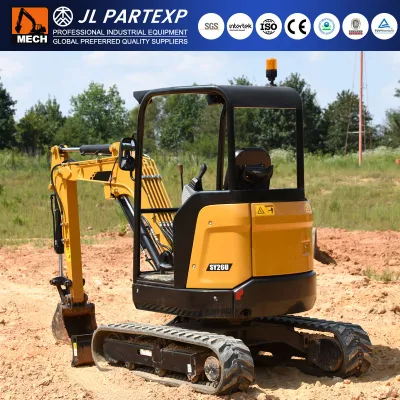

Short-tail-swing mini excavator
Reliable and easily transportable, This mini excavator with a swing boom and a true zero tail swing brings big performance and allows you to work with confidence in tight areas.
The open canopy design allows for improved visibility of the jobsite.Featuring a fully enclosed cab, operators can enjoy a comfortable cockpit while taking on earth-moving and road-building projects in any conditions.
The weight-adjustable suspension seat gives operators a comfortable space for a full day's work. Technicians have ground-level access to routine maintenance areas to make the machine easy to service. To top that off, you can move from job to job crushing deadlines while keeping logistics costs at a minimum.
· Swing boom functionality
· True zero tail swing
· Trailer ready with clear tie-down points to ensure safety during transport
· Primary auxiliary circuit to run powered attachments
· 12″ rubber tracks for the preservation of finished surfaces
· Weight-adjustable suspension seat
· Powerful Yanmar engine
Reliable and easily transportable, This mini excavator with a swing boom and a true zero tail swing brings big performance and allows you to work with confidence in tight areas.
The open canopy design allows for improved visibility of the jobsite.Featuring a fully enclosed cab, operators can enjoy a comfortable cockpit while taking on earth-moving and road-building projects in any conditions.
The weight-adjustable suspension seat gives operators a comfortable space for a full day's work. Technicians have ground-level access to routine maintenance areas to make the machine easy to service. To top that off, you can move from job to job crushing deadlines while keeping logistics costs at a minimum.
· Swing boom functionality
· True zero tail swing
· Trailer ready with clear tie-down points to ensure safety during transport
· Primary auxiliary circuit to run powered attachments
· 12″ rubber tracks for the preservation of finished surfaces
· Weight-adjustable suspension seat
· Powerful Yanmar engine
TOP FEATURES
ENGINE POWER
The successful Yanmar T4F engine guarantees reliable performance, even in difficult working conditions.
DURABILITY
The reinforced structure improves stability and extends the service life.
FUEL CONSUMPTION
The intelligent control system adapts the pump capacity to the available engine power for greater efficiency and reduced fuel consumption.
HYDRAULIC SYSTEM
Load-sensing hydraulic system for outstanding efficiency and performance.
VARIETY OF APPLICATIONS
Standard connections provide many options for adding accessories from any manufacturer for various applications.
ORIGINAL ACCESSORIES
Original parts and accessories represent maximum availability. Continuous certified quality comes guaranteed!
MAINTENANCE INTERVAL
Long maintenance intervals ensure high cost-effectiveness as a result of more efficient and safer machines.
EASE OF SERVICING
The large engine bonnet and the clear arrangement of the key components in the centre make maintenance and service quick and easy.
Operating excavators with unobtrusive view
A good view of outside is indispensable if you are to perform your work accurately and quickly. The cab offers the operator a wide field of view, allowing them to keep an eye on all areas and work steps at all times.
The entire work area can be controlled with ease thanks to the large front, side and rear windows, without the driver having to get out of their seat.
The high-quality ergonomic seat is not only comfortable to sit on, it also provides you with unusually generous legroom and freedom of movement. The powerful heater maintains a pleasant temperature in the cab at all times while you work. And the modern Yanmar engine, combined with the sophisticated damping, provides additional comfort by reducing cab vibrations and lowering the noise level.
Convenient maintenance is at the top of the agenda thanks to rear access
The large engine bonnet and the clear arrangement of the key components in the centre make maintenance and service quick and easy:
The air filter, water separator, oil dipstick, expansion vessel and oil filler neck are especially easy to reach.
Quiet and low-vibration engine
+ Responsive, precise control
+ Ergonomic, comfortable seat
+ Clear displays
+ Optimal visibility on all sides
+ Heater
+ ROPS/OPG-certified for safety in operation
You can communicate with us directly to obtain high-quality customized services!!! >>>
The large engine bonnet and the clear arrangement of the key components in the centre make maintenance and service quick and easy:
The air filter, water separator, oil dipstick, expansion vessel and oil filler neck are especially easy to reach.
Quiet and low-vibration engine
+ Responsive, precise control
+ Ergonomic, comfortable seat
+ Clear displays
+ Optimal visibility on all sides
+ Heater
+ ROPS/OPG-certified for safety in operation
You can communicate with us directly to obtain high-quality customized services!!! >>>
OPTIONAL FULLY ENCLOSED CAB
TECHNICAL SPECIFICATIONS
| DIMENSIONS | ||
| Boom Length | 2100 mm | 6' 11" |
| Stick (Arm) Length | 1300 mm | 4' 3" |
| A Transport Length | 4285 mm | 14' 1" |
| B Transport Width | 1550 mm | 5' 1" |
| C Transport Height | 2430 mm | 8' 0" |
| D Upper Structure Width | 1375 mm | 4' 6" |
| E Blade Height | 300 mm | 12" |
| F Track Width (standard shoe) | 300 mm | 12" |
| G Track Gauge | 1250 mm | 4' 1" |
| H Ground Clearance (minimum) | 290 mm | 11" |
| I Tail Swing Radius | 775 mm | 2' 7" |
| J Track Length on Ground | 1560 mm | 5' 1" |
| K Track Length | 1960 mm | 6' 5" |
You can communicate with us directly to obtain high-quality customized services!!! >>> | ||
Zero tail swing radius and independent boom swing allow operation in extremely confined spaces!!!
| TECHNICAL SPECIFICATIONS | ||
| Operating Weight | 2760 kg | 6,085 lb |
| Ground Pressure | 25.5 kPa | 3.7 psi |
| Engine | Yanmar 3TNV80F | |
| Displacement | 1.0 L | 62.6 in³ |
| Gross Power | 14.6 kW | 19.6 HP |
| Hydraulics | Load Sensing with Pilot Control | |
| Main Hydraulic Pump | Axial Piston - Variable Displacement | |
| Operating Flow (maximum) | 72.0 L/min | 19.0 gal/min |
| Operating Pressure (maximum) | 24.5 MPa | 3553 psi |
| Travel Motor | Axial Piston with Park Brake | |
| Travel Pressure (maximum) | 24.5 MPa | 3553 psi |
| Travel Speeds (maximum) | 2.4 / 4.5 km/hr | 1.5 / 2.8 mph |
| Travel Effort (maximum) | 20.0 kN | 4,496 lbf |
| Grade Capability (maximum) | 35° | |
| Swing Motor | Axial Piston with Swing Brake | |
| Swing Pressure (maximum) | 19.6 MPa | 2843 psi |
| Swing Speed (maximum) | 10 RPM | |
| Undercarriage (standard) | Belted Rubber Track | |
| Track Shoe Width (standard) | 300 mm | 12" |
| Track Rollers (per side) | 3 | |
| Carrier Rollers (per side) | 1 | |
| You can communicate with us directly to obtain high-quality customized services!!! >>> | ||
| SERVICE REFILL CAPACITIES | ||
| Fuel Tank Capacity | 34.0 L | 9.0 gal |
| Hydraulic Tank Capacity | 30.0 L | 7.9 gal |
| Engine Oil Capacity | 3.4 L | 0.9 gal |
| Cooling System Capacity | 4.1 L | 1.1 gal |
| You can communicate with us directly to obtain high-quality customized services!!! >>> | ||
| WORKING RANGE | ||
| Boom Length | 2100 mm | 6' 11" |
| Stick (Arm) Length | 1300 mm | 4' 3" |
| A Maximum Digging Height | 4410 mm | 14' 6" |
| B Maximum Dumping Height | 3100 mm | 10' 2" |
| C Maximum Digging Depth | 2820 mm | 9' 3" |
| D Maximum Vertical Wall Digging Depth | 2585 mm | 8' 6" |
| E Maximum Reach at Ground Level | 4850 mm | 15' 11" |
| F Minimum Swing Radius | 2110 mm | 6' 11" |
| DIGGING PERFORMANCE | ||
| Boom Length | 2100 mm | 6' 11" |
| Stick (Arm) Length | 1300 mm | 4' 3" |
| Bucket Breakout Force (ISO) | 24.3 kN | 5,463 lbf |
| Stick (Arm) Digging Force (ISO) | 14.2kN | 3,192 lbf |
Standard 2100 mm (6'11") Boom
Standard 1300 mm (4'3") Arm
Standard 300 mm (12") Track Shoes
No Bucket
