Basic Info.
Model NO.
GD560
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Model No.
Gd560
Max. Digging Depth
7015mm
Operating Weigh
53000kg
Hydraulic Valve Brand
Rexroth
Warranty of Core Components
1 Year
Moving Type
Crawler Excavator
Max. Dumping Height
6440mm
Volume of Fuel Tank
610L
Machinery Test Report
Provided
Hydraulic Tank
390L
Max Digging Radius
11020mm
Transport Package
Shipping
Specification
12110x3350x3705mm
Trademark
GOODOO
Origin
Shandong, China
HS Code
842952
Production Capacity
400 Pieces One Year
Product Description
Company Profile
Good International Trade(Yantai) CO,Ltd focused on the production and sales of excavators for more than ten years.Our company was established in 2012 and is known for its high-quality and durable excavators. The company has a rich history and extensive experience in the manufacturing of construction machinery. It has been committed to providing customers with reliable and efficient equipment, and its excavators are widely used in mining, construction, and infrastructure projects around the world.And now,our company is a global leader in the construction machinery industry.
Product Discribtion

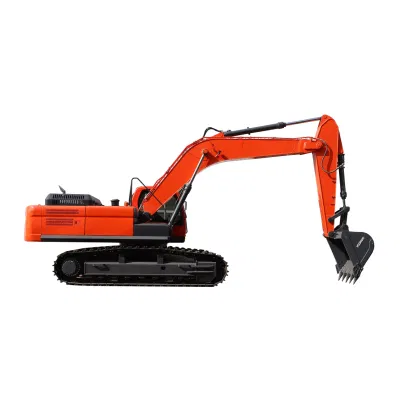

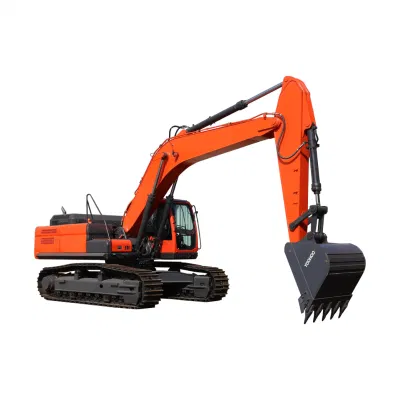

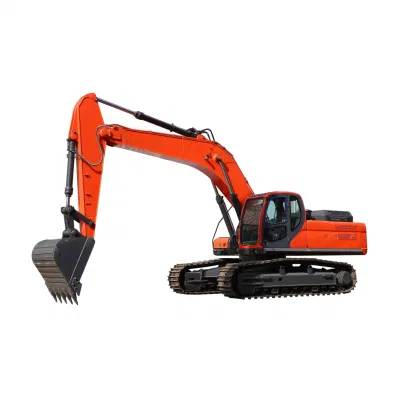

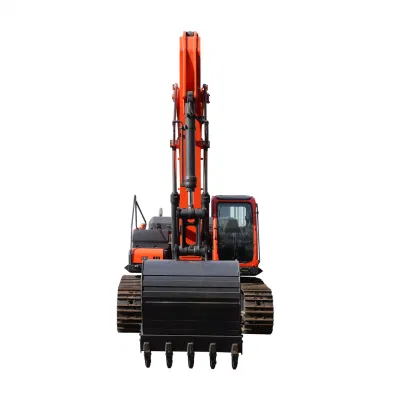

The GOODOO GD560 excavator uses Swedish imported Scania engines, with a 14% increase in power, more abundant power, strong operation, and faster speed. The new hydraulic system, electronically controlled main pump, with sensitive and accurate control, and an increase in displacement of more than 10%. Standard 3.6m³ large bucket, faster action changes, more loading. For large-scale mining conditions, a 205 larger crushing hammer is configured, and the crushing output is higher. The whole machine body is imported from Korea, reliable and durable. Standard reinforced and expandable chassis, galloping in the mine, and unstoppable.
These advantages enable the GOODOO GD560 excavator to perform outstandingly in terms of power, transmission, and reliability, and can better adapt to various working conditions.
| PRODUCT SPECIFICATIONS | ||
| Bucket capacity (m3) | 3.6 | |
| Operating Weight (kg) | 53000 | |
| Volume of fuel tank (L) | 610 | |
| Engine | DC13076A | |
| Rated power (kw/r/min) | 294/2100kw/rpm | |
| Dimensions LxWxH) | 12110x3350x3705mm | |
| Rated flow | 360L/min | |
| Brake form | Hydraulic | |
| Track width | 600mm | |
| Max climbing degree | 35° | |
| Travel speed | 5.6-3.2km/h | |
| Max. digging depth | 7015mm | |
| Max. digging radius | 11020mm | |
| Max. dumping height | 6440mm | |
| Max. digging height | 9790mm | |
