Basic Info.
Product Description

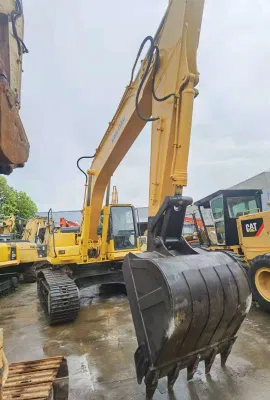

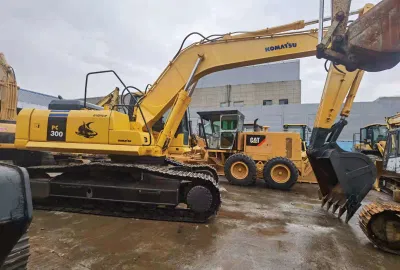

Komatsu PC300-7 Excavator
| Model | Komatsu PC300-7 |
| Condition | Used |
| Year | 2014-2018 |
| Moving Type | Crawler Excavator |
| Brand | Komatsu |
| Working Weight | 31200kg |
| Bucket capacity | 1.4m3 |
| Origin | Japan |
Other Details
Komatsu PC300-7 excavator configuration parameters
Specifications
Operating weight (kg) 31200
Bucket capacity (M3) 1.4
Boom length (mm) 3185
Stick length (mm) 6470
Origin: Jining, Shandong
Tonnage (ton) 30
Bucket backhoe
Joint venture / import
Power traditional power
Bucket backhoe
Joint venture / import
Power traditional power
performance
Slewing speed (RPM) 9.5
Walking speed (km / h) 3.2 / 4.5 / 5.5
Climbing capacity (%) 70 / 35 degree
Grounding voltage (kPa) 63.7
Bucket digging force (KN) 227
Digging force of stick (KN) 171

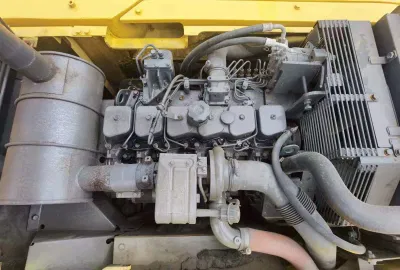

dynamic system
Engine model Komatsu saa6d114e
Rated power (kW / RPM) 180 / 1900
Displacement (L) 8.27
Number of cylinders 6
Cylinder diameter × stroke (mm) 114mm × 135
Cooling mode water cooling
Working mode: 6-cylinder, water cooling, direct injection, turbocharging, mechanical full range speed regulation

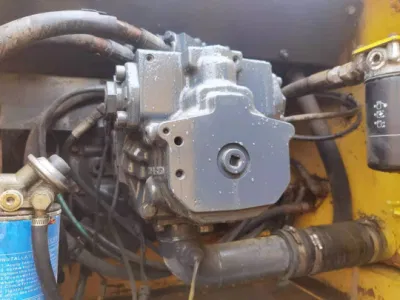

Hydraulic system
Maximum flow of main pump (L / min) 535l / min
Walking hydraulic motor type axial piston type × 2
Rotary hydraulic motor type axial piston type × 1
Traveling hydraulic circuit (MPA) 37.3
Slewing hydraulic circuit (MPA) 27.9
Control hydraulic circuit (MPA) 3.2
Boom cylinder number × cylinder diameter × stroke (mm) 140 × 1480 × 100
Number of stick (1825 × 160 × cylinder diameter)
Bucket cylinder number × cylinder diameter × stroke (mm) 150 × 1285 × 110
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (605 L)
Hydraulic tank (L) 188
Engine oil change quantity (L) 35
Coolant (L) 32
Body size
Total transport length (mm) 11140
Total transport width (mm) 3190
Total transport height (mm) 3280
Full height of cab (mm) 3130
Ground clearance of counterweight (mm) 1185
Track grounding length (mm) 3700
Total track length (mm) 4625
Track shoe width (mm) 600
Total track width (mm) 3190
Track gauge (mm) 2590
Minimum ground clearance (mm) 500
Rear turning radius (mm) 3450
Scope of work
Maximum excavation radius (mm) 11100
Maximum excavation radius of parking surface (mm) 10920
Maximum excavation depth (mm) 7380
Maximum excavation height (mm) 10210
Maximum unloading height (mm) 7110
Maximum vertical excavation depth (mm) 6480
Maximum effective excavation depth (mm) 7180
we also provide all these type model :
| Truck Crane | KATO | NK200E, NK250E, NK300E, NK400E, NK500E, NK800E, NK1000, NK1200, NK1200E |
| TADANO | TG250, TL250, TL250E, TL300E, TG300E, TG350E, TG450E, GT550E, TG550E, TG650E, GT650E, | |
| Rough terrain Crane | KATO | KR25H, KR45H, KA300, SS500.KR250E, KR450 |
| TADANO | KR250E,KR350E, TR250M, TR300M, AZ300D, AR350, TR450E, TR500M | |
| Crawler Crane | HITACHI | KH700, KH120T, KH125, KH150, KH180 |
| KOBELCO | 50T, 100T, 120T, 300T | |
| SUMITOMO | 50T, 100T, 200T | |
| Excavator | Hitachi | EX100, EX100WD, EX120, EX200, EX200LC, EX220, EX300, EX350, EX450, ZX70, ZX120, ZX150 |
| Caterpillar | 200, 235, 305, 307, 312, 320, 330, 324, 325, 345 (From Model B to Model D) | |
| Komatsu | PC50, PC60, PC100, PC120, PC130, PC200, PC210, PC220, PC300, PC350, PC400, PC450 | |
| Kobelco | SK100, SK120, SK200, SK350 | |
| Daewoo | DH55, 60, 130, 150, 220, 225, 300 | |
| Hyundai | 130w, 150w, 200, 210, 220, 225, 290, 305 | |
| Volvo | EC210, 240, 290,360,460,700 | |
| Loader | Caterpillar | 916, 924, 928, 936, 938, 950, 966, 980, 988 (From Model C to Model H) |
| Komatsu | WA100, 230, 250, 300, 320, 350, 360, 380, 400, 430, 470 | |
| Kawasaki | 70, 70B, 80Z, 85Z, 90, 90Z, 95Z | |
| Backhoe Loader | JCB3CX, JCB4CX, CAT416,CAT428 | |
| Bulldozer | Caterpillar | D6D, D6H, D6R, D6G, D7H, D7G, D7R, D8K, D8R, D8N, D8L, D9N, D9R, D10N |
| Komatsu | D50P, D60P, D65, D85, D155 | |
| Motor Grader | Caterpillar | 12G, 14G, 120G, 140G, 16G, 140H, 160H, 140K |
| Komatsu | GD511A, 605A, 623 |
