Basic Info.
Model NO.
LTB 904-B
Usage
Farm Tractor, Garden Tractor
Certification
CE
Drive Wheel
4WD
Emission Standard
Euro II
Fuel
Gas / Diesel
Service Life
3-6 Years
Size
Medium
Color
Customed
Condition
New
Overall Dimension
4080*1750*2650mm
Front Wheel Tread
1285mm
Gearbox Gears Number
12f+12r
Rear Tires
14.9-30
Max. Traction Force (Kn)
15.9
Wheel Base
2080mm
Rear Wheel Tread
1350mm
Front Tires
8.3-24
Max. Lifting Force( Kn )
15.9
Front / Rear Ballast (Kg)
270/470
Minimum Use Quality
3250kg
Number of Cylinders
4
Engine Speed
2400r/Min
Gear Number Forward/Backward
12/12
Fuel Supply Method
Electronically Controlled Unit Pump
Transport Package
by Sea/by Bulk/by Frame/Container
Trademark
FORTIUS
Origin
China
HS Code
8701941090
Production Capacity
5000units/Year
Product Description

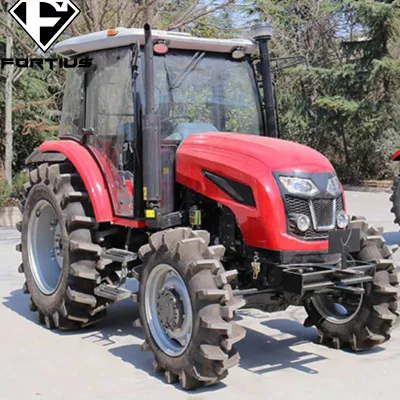

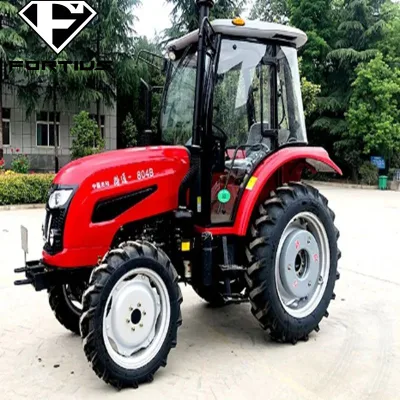

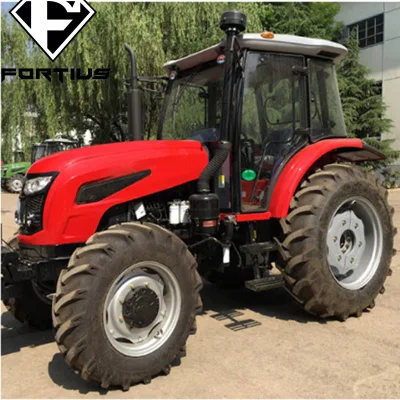

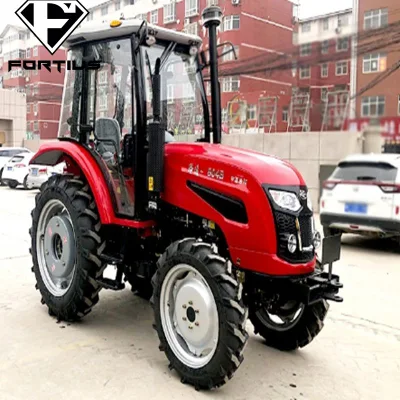

Good Quality Construction Machinery100HP 120HP Farming Four Wheel Drive Multi Functional Agriculture Tractor Garden Tractor With Front Loader
Advantage
1.The QUANCHAI series engine equipped leads a large power reserve, low fuel consumption and high economic benefits.
2.The imported high-strength powder metallurgy material is used for clutch disc with reliable transmission performance.
3.Independent oil circuit of hydraulic system ensure high cleanliness and low failure rate for it.
4.Reinforced chassis structure gives stable and reliable performance.
5.4x3x (1+1) combined transmission is adopted with 12F+12R gear, meanwhile shuttle shift on side is easy to operate.
6.The vertical double oil cylinder lifter with pressure transfer system shows strong lifting force and good operation adaptability.
7.Extra large volume diesel tank satisfied the requirements of long-term work.
8.The flat-bottomed console and shuttle shift control under the steering wheel are ergonomically reasonable.
9.The full hydraulic steering system is flexible and comfortable.
10.More comfortable driving and riding space provided by optional cab.
2.The imported high-strength powder metallurgy material is used for clutch disc with reliable transmission performance.
3.Independent oil circuit of hydraulic system ensure high cleanliness and low failure rate for it.
4.Reinforced chassis structure gives stable and reliable performance.
5.4x3x (1+1) combined transmission is adopted with 12F+12R gear, meanwhile shuttle shift on side is easy to operate.
6.The vertical double oil cylinder lifter with pressure transfer system shows strong lifting force and good operation adaptability.
7.Extra large volume diesel tank satisfied the requirements of long-term work.
8.The flat-bottomed console and shuttle shift control under the steering wheel are ergonomically reasonable.
9.The full hydraulic steering system is flexible and comfortable.
10.More comfortable driving and riding space provided by optional cab.
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc.
In paddy fields, dry land, arid land, orchard and plastic greenhouse.
| Tractor Model | FTSB 904 | |
| Drive Type | 4×4 | |
| Overall Dimension L×W×H(mm) | 4080×1750×2650 | |
| Wheel base(mm) | 2080 | |
| Front wheel tread(mm) | 1285 | |
| Rear wheel tread(mm) | 1350 | |
| Min. ground clearance(mm) | 370 | |
| Min. steering radius | Unilateral brake(m) | 4.2±0.3 |
| Not unilateral brake(m) | 4.9±0.3 | |
| Min. operating weight (KG) | 3030 | |
| Gearbox gears number | 12F+12R | |
| Speed | Forward(Kw/h) | 2.41~30.91 |
| Reverse(Kw/h) | 2.41-34.67 | |
| Engine | Model | LR4M5-23 |
| Rated power (Kw) | 66.2 | |
| Rated speed (r/min) | 2300 | |
| Tires spec. | Front tires | 8.3-24 |
| Rear tires | 14.9-30 | |
| Steering Type | Full hydraulic front wheels steering | |
| Max. lifting force( KN ) | 15.9 | |
| PTO | Type | Rear-mounted, Independent type |
| Speed (r/min) | 760/1000 or 540/1000 or 540/760 or 760/850 | |
| Power(Kw) | 56.3 | |
| Control type of ploughing depth | Height control & flotation control | |
| Max. traction force (KN) | 15.9 | |
| Front / rear Ballast (KG) | 270/470 | |
