Basic Info.
Model NO.
RL-AE34
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Condition
New
Driven
Hydraulic Motor
Side Pontoon
Can Be Customized
Spud
Customized
Working Site
Port/River/Lake/Lagoon/Harbour Basins and Canals
Application
Sand/Mud/Clay Dredging
Transport Package
Container or Bulk Cargo
Specification
20 ton
Trademark
Relong
Origin
China
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
2200.00cm * 480.00cm * 390.00cm
Package Gross Weight
36000.000kg
Product Description

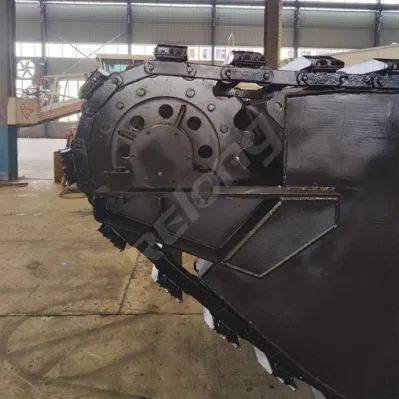

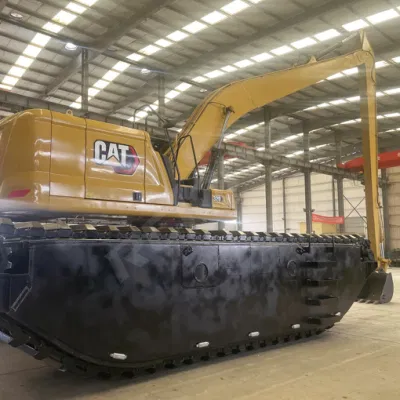

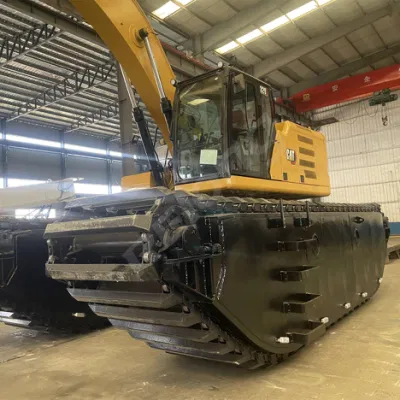

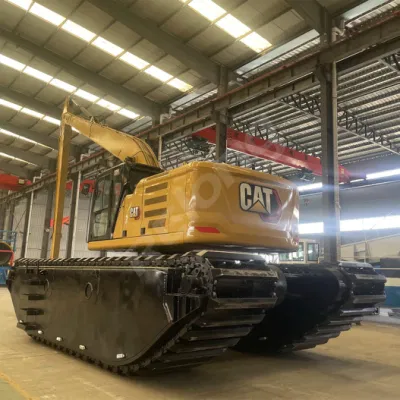

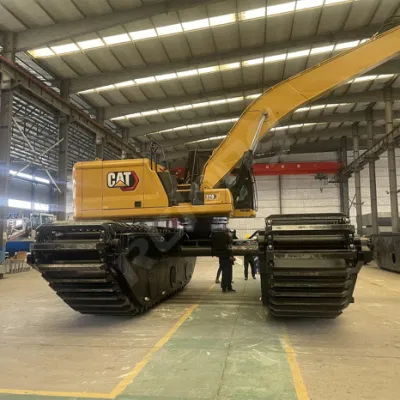

Amphibious excavators are multi-purpose excavators used in land, shallow water, marsh and deep water areas. After years of practical testing, Relong amphibious excavator has been recognized and trusted by the majority of users. The upper half structure can choose the excavator brand and all kinds of machine you need. Various types of buoyancy tank have been designed and widely used, which can be adapted to 5-40 ton excavator, and can also be customized according to your working conditions and requirements, in accordance with your exclusive scheme.
 |
| Description | Model Specification | ||||||
| RL-AE06 | RL-AE12 | RL-AE20 | RL-AE25 | RL-AE30 | RL-AE34 | RL-AE40 | |
| Track length on ground | 2700mm | 3500mm | 5000mm | 5000mm | 6500mm | 7000mm | 7000mm |
| Max. Track Length | 5700mm | 6200mm | 9500mm | 9500mm | 10500mm | 11500mm | 13500mm |
| Transportation Length | 7260mm | 8070mm | 11460mm | 11660mm | 13610mm | 14480mm | 14480mm |
| Transportation Height | 3700mm | 3700mm | 3950mm | 3950mm | 4040mm | 4140mm | 4800mm |
| Counterweight clearance | 1810mm | 2010mm | 2010mm | 2010mm | 2010mm | 2210mm | 2540mm |
| Spud height | 6000mm | 6000mm | 8000mm | 8000mm | 10000mm | 12000mm | 12000mm |
| Overall width(with spud) | 5500mm | 6160mm | 6800mm | 6800mm | 8000mm | 8000mm | 8000mm |
| Track side | 1640mm | 1840mm | 1840mm | 1840mm | 1840mm | 2040mm | 2340mm |
| Track gauge | 3500mm | 3660mm | 3700mm | 3700mm | 4700mm | 4700mm | 4700mm |
| Overall width(no spud) | 4500mm | 5160mm | 5200mm | 5200mm | 6400mm | 6400mm | 6400mm |
| Single track width | 1300mm | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm | 2000mm |
| Spud space | 4000mm | 4500mm | 5600mm | 5600mm | 5600mm | 6000mm | 6000mm |
| Spud span | 4900mm | 5560mm | 5600mm | 5600mm | 6800mm | 7000mm | 7000mm |
| Max.digging reach | 6700mm | 8210mm | 9790mm | 9990mm | 10720mm | 10740mm | 11240mm |
| Max. Digging reach on ground | 6500mm | 8010mm | 9699mm | 9899mm | 10520mm | 10520mm | 11040mm |
| Max. Digging depth | 3400mm | 5580mm | 5660mm | 5860mm | 6415mm | 5910mm | 6365mm |
| Max. Dumping height | 5174mm | 6755mm | 7880mm | 8080mm | 8163mm | 8296mm | 8605mm |
| Min. Dumping height | 2583mm | 3300mm | 2501mm | 2501mm | 3638mm | 3838mm | 4370mm |
| Max. Digging height | 8510mm | 9055mm | 9980mm | 9980mm | 11040mm | 11320mm | 11530mm |
| Max. Bucket pin height | 6203mm | 8040mm | 8267mm | 8267mm | 9610mm | 9610mm | 10300mm |
| Max. Vertical digging depth | 2027mm | 2505mm | 3029mm | 3029mm | 4050mm | 3080mm | 3980mm |
| Max. Vertical radius | 4046mm | 5555mm | 6980mm | 6980mm | 8079mm | 9275mm | 9070mm |
| Min. Digging Clearance | 325mm | 465mm | 562mm | 562mm | 420mm | 910mm | 1760mm |
| Max. Swing radius | 2365mm | 2445mm | 3560mm | 3560mm | 4019mm | 4413mm | 4505mm |
Main Pontoon Parameters | Excavator(T) | Model | Main Pontoon Size L*W*H(m) | Overall Size L*W*H(m) | Chain Qty | Hydraulic motor Qty | Buoyancy(T) | Reserve buoyancy coefficient | Ground pressure (Kpa) | Type | Reference weight(kg/set) |
| 6 | RLAE06S | 5.70*1.57*1.59 | 5.70*4.00*1.59 | 2 | TM 10*2 | 14 | 16% | 1.1 | F | 8500 |
| 8 | RLAE08S | 5.70*1.57*1.74 | 5.70*4.00*1.74 | 2 | TM22*2 | 15.5 | 7% | 1.2 | S | 9000 |
| 10 | RLAE10S | 6.20*1.57*1.84 | 6.20*4.20*1.84 | 2 | 18.5 | 10% | 1.3 | S | 10000 | |
| 12 | RLAE12S | 6.20*1.57*1.84 | 6.20*4.20*1.84 | 2 | 3% | 1.4 | S | 10000 | ||
| 15 | RLAE15S | 7.30*1.57*1.84 | 7.30*4.20*1.84 | 2 | 22.5 | 2% | 1.4 | S | 12000 | |
| 15 | RLAE15F | 7.30*1.97*1.84 | 7.30*5.00*1.84 | 3 | TM40*2 | 27 | 12% | 1.3 | F | 15000 |
| 20-22 | RLAE20S | 8.50*1.97*1.84 | 8.50*5.20*1.84 | 3 | 31.5 | 5% | 1.4 | S | 16710 | |
| 20-22 | RLAE20F | 10.00*1.97*1.84 | 10.00*5.20*1.84 | 3 | TM60*2 | 38 | 15% | 1.2 | F | 19000 |
| 24 | RLAE24S | 10.50*1.97*1.84 | 10.50*5.20*1.84 | 3 | 40.5 | 8% | 1.3 | S | 21000 | |
| 26 | RLAE26S | 11.00*1.97*1.84 | 11.00*5.20*1.84 | 3 | 42.5 | 2% | 1.4 | S | 25000 | |
| 30 | RLAE30S | 11.50*1.97*1.84 | 11.50*5.20*1.84 | 3 | TM70*2 | 45 | 2% | 1.5 | S | 28000 |
| 33 | RLAE33S | 11.50*2.44*1.84 | 11.50*6.50*1.84 | 3 | 60 | 5% | 1.4 | S | 35000 | |
| 36 | RLAE36S | 11.50*2.44*2.34 | 11.50*6.50*2.34 | 3 | 80 | 25% | 1.6 | F | 40000 | |
| 40 | RLAE40S | 12.00*2.44*2.34 | 12.00*6.50*2.34 | 3 | 92 | 29% | 1.5 | F | 44000 | |
| 42 | RLAE42S | 12.50*2.44*2.34 | 12.50*6.50*2.34 | 3 | TM70*4 | 96.5 | 27% | 1.5 | F | 48000 |
| 45 | RLAE45S | 13.00*2.44*2.34 | 13.00*6.50*2.34 | 3 | 101 | 26% | 1.5 | F | 50000 | |
| 48 | RLAE48S | 14.00*2.64*2.34 | 14.00*6.50*2.34 | 3 | 110 | 27% | 1.5 | F | 54000 | |
| 50 | RLAE50S | 14.00*2.94*2.34 | 14.00*7.00*2.34 | 3 | 125 | 36% | 1.4 | F |
Relong Technology Co., Ltd. is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design, production, installation, and operation management. Relong provides one-stop customized service according to each client's different dredging site condition. Professional design, international welders welding work, professional field service and after-sale service are the foundation of Relong brand equipment high quality and high reputation.
Q: What are your factory workshops? A: Our factory production process includes casting, mechanical process, lathe process, heat treatment, assembly, and test, etc. Warmly welcome to visit & test my factory any time.
Q: How does your factory do regarding quality control?
A: "Quality is a priority. We always attach great importance to quality controlling from the beginning to the end. Our factory has 15~30 QC.
Q: Is it easy for customers to change the parts by themselves?
A: Yes, the structure is simple, customers can change it very easily. We will also supply you with maintenance tools for free.
Q: Can you install the motor or diesel engine with the pump for us?
A: Yes, we can, it's no problem, we are experienced in this.
Q: We don't know which pump model we need, can you help us?
A: Yes, please tell me your detailed requirements, include liquid, flow rate, head, etc,
My engineers teal will calculate & select the most suitable pump model for you, offer a pump solution for you.
Q: How long can you reply to us if we send an inquiry?
A: Generally within 2 hours, we will send you an official quotation sheet, with price, technology data, performance curve, dimension, etc.
