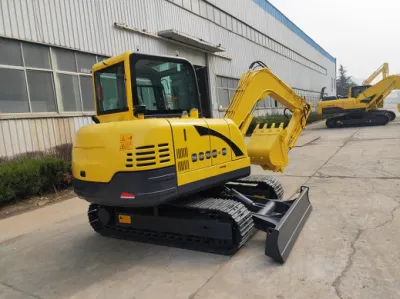

Lge660f Mini Excavator for Laying Cables

Get the Lge660f Mini Excavator for Laying Cables from our factory. Perfect for cable installation projects, with high efficiency and reliability.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Accessories:
Overview

Basic Info.

Model NO.
LGE660F
Condition
New
Rated Load
1-3t
Transmission
Hydraulic - Mechanical
Load and Unload Mode
Front Discharge
Walking Mode
Wheeled
Type
Medium-sized Loader
Engine
Yto
Gearbox
Zf4wg200
Loading
2tons
Certificate
Eac
Transport Package
in Container
Specification
7100kgs
Trademark
LAITUO
Origin
China
HS Code
842951
Production Capacity
2000units Per Year

Packaging & Delivery

Package Size
615.00cm * 305.00cm * 335.00cm
Package Gross Weight
9000.000kg

Product Description

Products Description
Lge660f Mini Excavator for Laying Cables Lge660f Mini Excavator for Laying Cables
1. This model adopts a closed hydrostatic and stepless speed change driving system composed of variable piston pump and variable piston motor, which is stable and comfortable in operation and high in production efficiency;
2. This model adopts the wheeled central double articulated structure, which is unique in China and has a longer service life;
3. This model adopts hydraulic control system design, which is more user-friendly and convenient to operate.
Lge660f Mini Excavator for Laying Cables

TE906 Hydraulic Crawler Excavator
 Technical Specifications
          Engine       Travel System
Model YANMAR 4TNV94L Travel motors JEIL, Korea; Variable axial piston motor
Type Four-cylinder in line,
natural intake		 Support roller quantities 2×5
Carrier roller quantities 2×1
No. of cylinder 4 Travel shoes 2×40
Bore and stroke 94mm×110mm Travel speed 2.49/4.8km/h
Displacement 3.054L Drawbar pulling force 46.5kN
Power output 35.5kW/2200rpm Grade ability 58% (30°)
Ground clearance 360mm
       Hydraulic System
 Cab & Control
Pump REXROTH Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner
Type variable double-piston pump
Max. discharge flow 2×60.5L/min
Max. discharge pressure
Boom, arm and bucket 22MPa Control Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;
Electric rotary-type engine throttle
Travel circuit 22MPa
Swing circuit 21.5MPa
Control circuit 4MPa Boom, Arm & Bucket
Pilot control pump Gear type Boom cylinder 115mm×60mm×720mm
Main control valve Negative flow control Arm cylinder 90mm×60mm×877mm
Oil cooler Air cooled type Bucket cylinder 85mm×55mm×600mm
       Swing System Refilling Capacities&lubrications
Swing motor JEIL, Korea Fuel tank 110L
Swing motor type Axial-piston motor Cooling system 10L
Brake Hydraulic oil released Engine oil 12L
Parking brake Hydraulic disc brake Hydraulic oil tank 90L  Tank oil level
Swing speed 10.4r/min 130L  Hydraulic system
                            Bucket
Type Backhoe bucket
     Bucket capacity 0.22m3 (SAE)
Bucket width 769mm
Arm Type
A Max. digging depth 5784mm
B Max. dumping height 3986mm
C Max. digging height 3858mm
D Max. vertical digging depth 3786mm
E Max. Depth cut for 2440m(8')Level Bottom 3449mm
F Max. digging distance 6195mm
G Max. digging radius at ground level 6062mm
H Min. swing radius of work equipment 2392mm
Digging Force (ISO6015)          Unit: kN
Arm length 1600mm
Bucket digging force 39kN
Arm digging force 29.3kN
Arm Type                                 1600mm
A Overall length 5851mm I Tread 1990mm
B Ground contact length (Transportation) 3320mm J Track length 2569mm
C Overall height(to top of boom) 1932mm K Track gauge 1480mm
D Overall width 1880mm L Track width 1880mm
E Overall height(to top of cab) 2621mm M Shoe width 400mm
F Counter weight ground clearance 708mm O Bonnet height 1633mm
G Ground clearance 360mm P Revolving frame width 1780mm
H Tail swing radius 1655mm Q Distance from swivel center to tail 1655mm
              Operating Weight and Ground Pressure
Operating weight includes basic machine (with boom 3m, arm 1.6m, bucket 0.22m3, and blade 1880mm×464mm)
Shoe width 400mm
Overall width 1880mm
Ground pressure 33KPa
Operating weight 5850kg

Side dump bucket;Breaking hammer;Narrow bucket without teeth.
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Product Description
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables



Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables

Accessories:



Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables

Lge660f Mini Excavator for Laying Cables Lge660f Mini Excavator for Laying Cables
Lge660f Mini Excavator for Laying Cables Lge660f Mini Excavator for Laying Cables Lge660f Mini Excavator for Laying Cables Lge660f Mini Excavator for Laying Cables

Q1: Are you a factory?

A1: Of course. we are established in 2010, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.

Q2: Can you customized products? OEM products or ODM products?

A2: Yes, we can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q3: What's the specification of the chargers?

A3: we have all kinds of the chargers and welcome the customers to custom-made.

Q4: How about the delivery time?

A4: Usually we producing time is 7 working days after we receive the advanced payment,The specific order quantity needs to be adjusted, and it can be delivered within 7 days.. For some standard products, we have most in stock and could delivery immediately.

Q5: Do you have agent or representative abroad?

A5: Yes, we have 4 branches around the world, namely Australia, Turkey, Thailand, and the United States; we have a total of 168 agents around the world that can provide different products and services;

Q6: Can we print the LOGO on products?

A6: Yes, New Newton can provide you with OEM service for free according to the requirements you provide

Q7: What is your payment term?

A7: T/T or L/C or Western Union, and more payment methods, it all depends on your decision, if you want any other way, please contact us.

Q8: What can I get from cooperating with NEW NEWTON?

A8: 1. Unique products, with customized service.

       2. Timely production and delivery, time is money.

       3. Market protection service, long term business strategy.

       4.High-quality products at the most economical price.

       5.24-hour online service to help you quickly solve all product and use design problems.
