Basic Info.
Model NO.
JG75L
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Boom Length
3300mm
Arm Length
1850mm
Transport Package
Nude Packing
Specification
5500*2100*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year

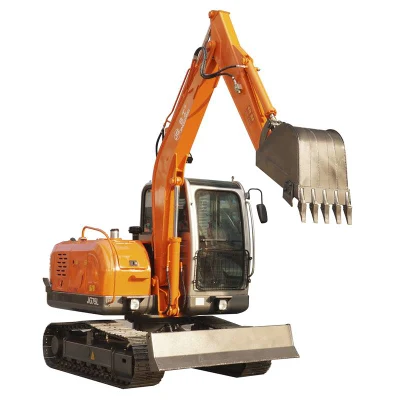

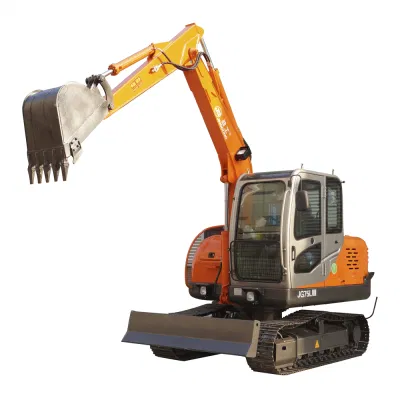

Product Description
With the rapid progress and development of social science and technology, the development of construction machinery is more and more rapid, excavator has become one of the indispensable construction machinery in engineering construction. It can be used for earth rock excavation, land leveling, urban construction and trenching.
Company
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
Optional Device
Exhibition Show
Certificates
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maximum Digging Reach | 6350mm | |||||||||
| Maximum Digging Depth | 3570mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6600mm | |||||||||
| Maximum Dumping Height | 4500mm | |||||||||
| Back-end radius of gyration | 1800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5500*2100*2650mm | ||||||||
| Distance From The arm to Rotate Machine | 3600mm | |||||||||
| Gauge base | 2060mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7000kg | |||||||||

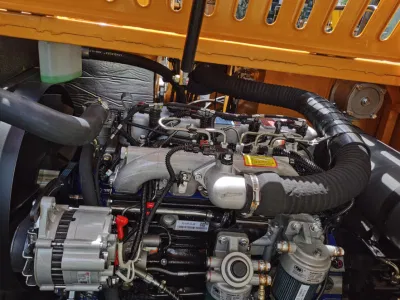

| Engine model | YUNNEI | |||||||||
| Rated Power | 58.8KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 140L/min | |||||||||
| Metering gear pump | 2*28ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| (High speed/low speed) | 4.5/2.5km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.25m3 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
