Basic Info.
Model NO.
HT10C
Usage
Marine Excavator, Mining Excavator, GM Excavator, Garden Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.025cbm
Size
Mini -Scale
Certification
CE, ISO9001: 2000, EPA/Euro 5
Condition
New
Starting Method
Electrical Starting
Engine Model
Koop 192f
Rated Power
7kw/3000r/Min
Maximum Digging Depth
1650mm
Max. Vertical Digging Depth
1375 mm
Maximum Dumping Height
1800mm
Max. Dumping Height
1850 mm
Max Digging Radius
2850mm
Swing Speed
10 Rpm
Travel Speed
1.5km/H
Min. Rotation Radius
1330 mm
Chassis Width
896 mm
Max. Upgrade Height of Bulldozer Blade
345 mm
Max. Digging Depth of Bulldozer Blade
255 mm
Transport Package
Wooden Case
Specification
1000 kg 2750*900*1330 mm
Trademark
Hightop
Origin
Shandong, China
HS Code
8429521200
Production Capacity
500 Set /Month
Product Description

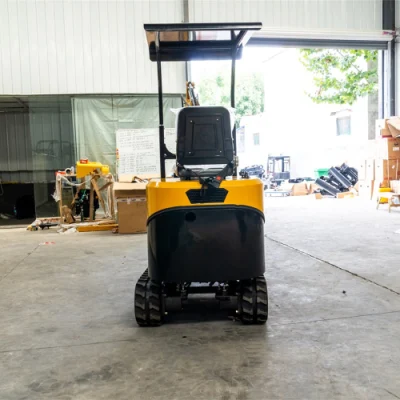

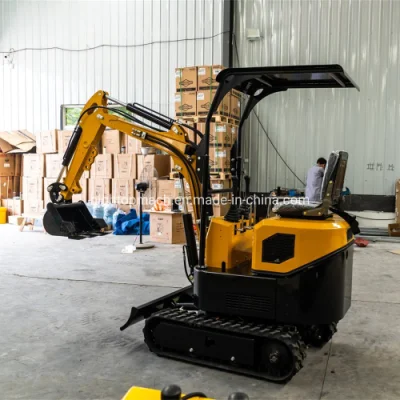

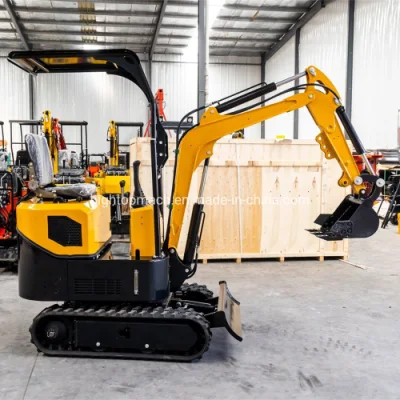

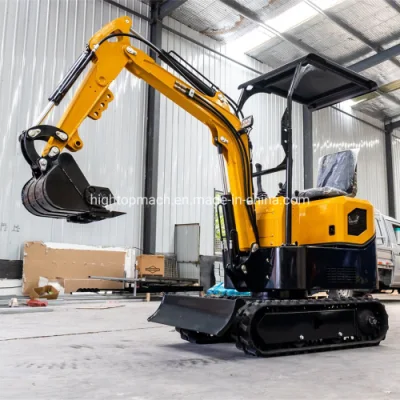

1 ton mini excavator with radiator and hydraulic tensioning dervice
It is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, simple design, easy to maintain.
It is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, simple design, easy to maintain.
| SPECIFICATIONS FOR 1TON MINI DIGGER / BAGGER MINI EXCAVATOR | |||
| Model | HT10 | ||
| Operate Weight | 1000kg | ||
| Digging bucket capacity | 0.025cbm/120kg | ||
| Bucket width | 380mm | ||

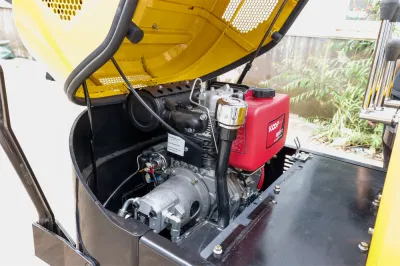

| Engine | CHANGCHAI (KD192),Single cylinder, fan cool | ||
| Rated power | 8.6 kw/3600r/min | ||
| Displacement | 0.211 L | ||
| Bore stroke | 70x55 | ||
| Main pump | CBK-F6.8 | ||
| Displacement | 6.8ml/r | ||
| Swing motor | SJ-TECH (MP-1-160) | ||
| Traveling motor | KERSEN(OMS-2450) | ||
| Travel speed | 1.5km/h | ||
| Overall dimension( LxWxH) | 2770x896x1490 mm | ||
| Max. Digging depth | 1650 mm | ||
| Max. Vertical digging depth | 1375 mm | ||
| Max. Digging height | 2610 mm | ||
| Max. Dumping height | 1850 mm | ||
| Max. Digging radius on ground | 2850 mm | ||
| Min. Rotation radius | 1330 mm | ||
| Max. Upgrade height of bulldozer blade | 345 mm | ||
| Max. Digging depth of bulldozer blade | 255 mm | ||
