Basic Info.
Model NO.
JG80L
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Boom Length
3300mm
Arm Length
1850mm
Transport Package
Nude Packing
Specification
6100*2800*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
Product Description

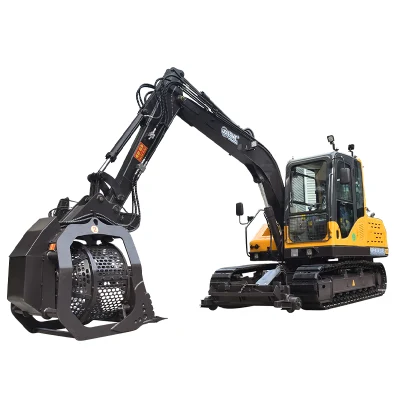

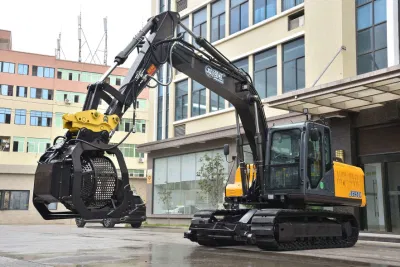

![New Type Rotary Screen Bucket Excavator Made in China Uses Internal Combustion Drive](http://img6.grofrom.com/www.bailemachineco.com/226f3j00hcUWwYZnbRpD/New-Type-Rotary-Screen-Bucket-Excavator-Made-in-China-Uses-Internal-Combustion-Drive.webp)
![New Type Rotary Screen Bucket Excavator Made in China Uses Internal Combustion Drive](http://img6.grofrom.com/www.bailemachineco.com/226f3j00lcUWmISqhfzL/New-Type-Rotary-Screen-Bucket-Excavator-Made-in-China-Uses-Internal-Combustion-Drive.webp)
SPECIFICATIONS | ||||||||||
RANGE OF OPERATION | Boom length | 3300mm | ||||||||
Arm length | 1850mm | |||||||||
Maimum digging force | 45KN | |||||||||
Back-end radius of gyration | 1980mm | |||||||||
SCREENING BUCKET ATTACHMENT | Max. bucket capacity | ≥0.25m³ | ||||||||
Swing speed of bucket | ≥30r/min | |||||||||
Maximum digging force | ≥45KN | |||||||||
DIMENSION | (Length*width*height) travel position | 6100*2800*2650mm | ||||||||
Roller gauge | 2600mm | |||||||||
Track Gauge | 1570mm | |||||||||
Width Of Crawler | 400mm | |||||||||
Ground clearance of counterweight | 780mm | |||||||||
Min ground clearance | 280mm | |||||||||
TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
Angle of rotation | 360° | |||||||||
Machine weight | 8000~8500kg | |||||||||
Engine model | YUCHAI | |||||||||
Rated Power | 48~62.5KW | |||||||||
Rated Speed | 2200r/min | |||||||||
Fqt Fuel Quantity | ≥4L/h | |||||||||
Capacity Of The Fuel Tank | 110L | |||||||||
Hydraulic Tank Capacity | 110L |

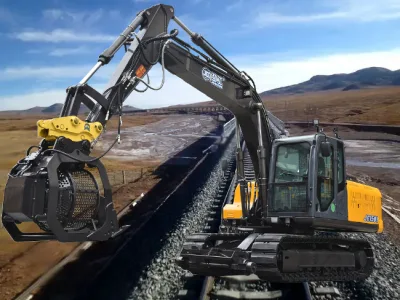

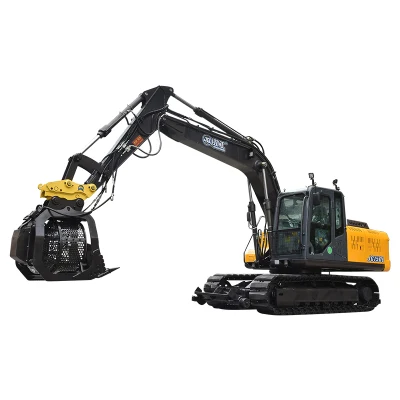

![New Type Rotary Screen Bucket Excavator Made in China Uses Internal Combustion Drive](http://img6.grofrom.com/www.bailemachineco.com/226f3j00VcRWwbZrHUzD/New-Type-Rotary-Screen-Bucket-Excavator-Made-in-China-Uses-Internal-Combustion-Drive.webp)
![New Type Rotary Screen Bucket Excavator Made in China Uses Internal Combustion Drive](http://img6.grofrom.com/www.bailemachineco.com/226f3j00WqYVAKshZGpH/New-Type-Rotary-Screen-Bucket-Excavator-Made-in-China-Uses-Internal-Combustion-Drive.webp)
![New Type Rotary Screen Bucket Excavator Made in China Uses Internal Combustion Drive](http://img6.grofrom.com/www.bailemachineco.com/226f3j00VbYWAdKRCGuH/New-Type-Rotary-Screen-Bucket-Excavator-Made-in-China-Uses-Internal-Combustion-Drive.webp)
![New Type Rotary Screen Bucket Excavator Made in China Uses Internal Combustion Drive](http://img6.grofrom.com/www.bailemachineco.com/226f3j00okUWARKyCYpL/New-Type-Rotary-Screen-Bucket-Excavator-Made-in-China-Uses-Internal-Combustion-Drive.webp)
