Basic Info.
Product Description
Wheel excavator X120-L with CE ISO certificate
12ton, Yanmar(4TNV98T-SFN) engine, 57.7KW, 0.5m3 bucket, 4WD, Germany MOIFLIUD main pump, valve, USA EATON swing motor, LIYUAN traveling motor, USA PARKER Sealing parts, Joystick, Italy Manuli hydraulic pipe, A/C cab, English monitor, Radio, USB, all LED light, YTO axle and transmission, Overall dimension: 6650x2475x3165mm

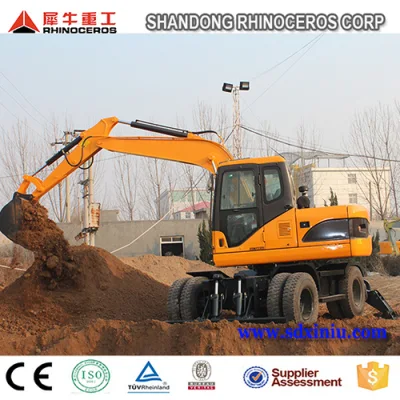

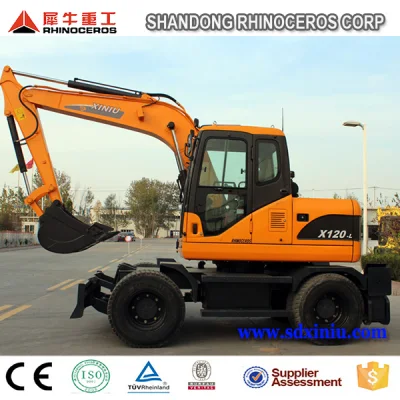

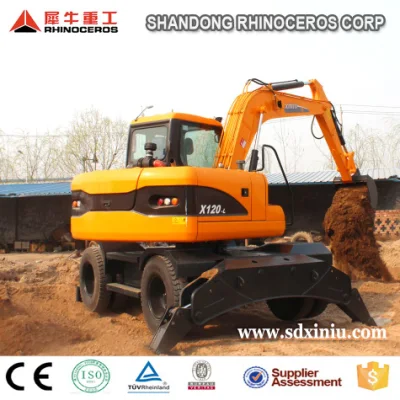

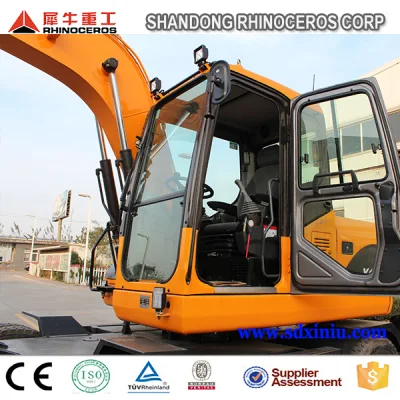

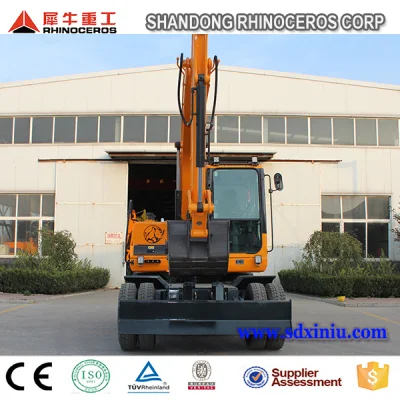

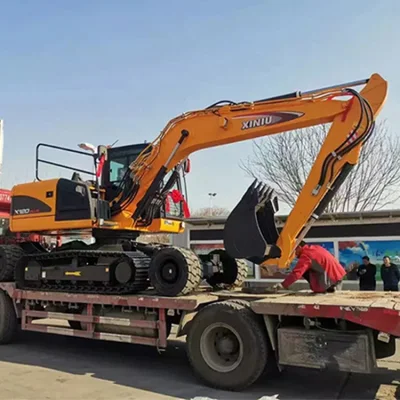

1. Wheel excavator X120-L photos:
2. Specification:
| Model | X120-L |
| Brand | RHINOCEROS |
| Operating Weight | 12 t |
| Overall dimension | 6650*2475*3165mm |
| Bucket capacity | 0.45cbm |
| Engine type | YANMAR(4TNV98T-SFN) |
| Rated power/speed | 57.7KW |
| No. of cylinders/type | 4 cylinders in line |
| Bore and stroke | 98*110 |
| Voltage of start motor | 24V |
| Starting type | ELECTRIC |
| Hydraulic main pump | MOIFLIUD(IPO750000) |
| Hydraulic system pressure | 29MPa |
| Hydraulic system flow | 150L/Min |
| Valve | MOIFLIUD (IV1751480) |
| Swing motor | USA EATON(JMF043PS) |
| Max swing speed | 10.5/min |
| Travel motor | LIYUAN(L2F80W) |
| Max travel speed | 25km/h |
| Axle and Transmission | YTO(KCE100) |
| Gear | Forward 1 2 ; Reverse 1 2 |
| Bucket Digging Force | 55Kn |
| Arm Digging Force | 40Kn |
| Grade ability | 35 degree |
| Working fuel consumption | 8.16L/h |
| Diesel oil tank capacity | 160L |
| Engine oil tank capacity | 12L |
| Hydraulic oil tank capacity | 130L |
| Cooling fluid tank capacity | 22L |
| Shipping Length | 6650mm |
| Shipping Height | 3165mm |
| Overall Width | 2475mm |
| Boom length | 3800mm |
| Arm length | 1824mm |
| Radius,Swing Center to Rear End | 1845mm |
| Min swing radius | 2515mm |
| Tyre Type | 9.00R20, with 8 tyres |
| Wheelbase | 2500mm |
| Wheel Tread | 1940mm |
| Steering Width | 1170mm |
| Ground clearance | 270mm |
| Blade height | 360mm |
| Blade Dimension | 2350*475mm |
| Overall width with outrigger extended | 3468mm |
| Drive Method 2WD/4WD | Hydraulic four wheel driven |
| light | All LED lights |
| Max Digging Height | 7140mm |
| Max Dumping Height | 5195mm |
| Max Digging Depth | 3640mm |
| Max Digging Radius | 6530mm |
| Standard machine with A/C | AC |
| Packing way | roll-on-roll-off |
| Passed certificates | CE ISO |
| Can add accessories | hammer, auger, quick hitch, grader, narrow bucket, tilt bucket |
3. Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Loader, Skid steer loader, Concrete pump, Concrete pump truck and the spare parts(Chassis,Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple), Dump truck, Mini truck.
