Product Description

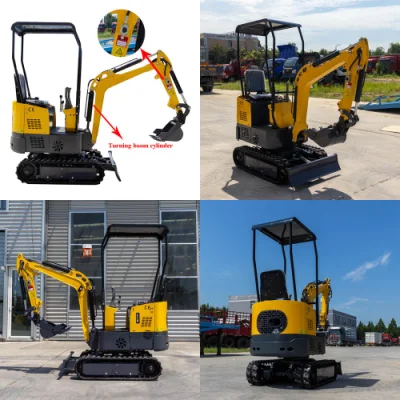

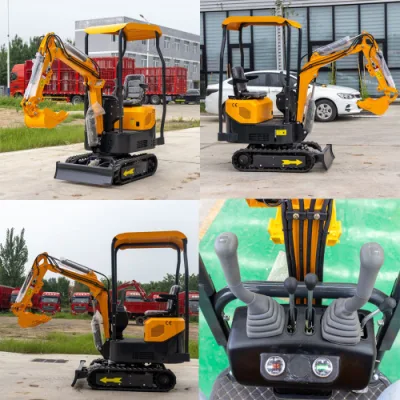

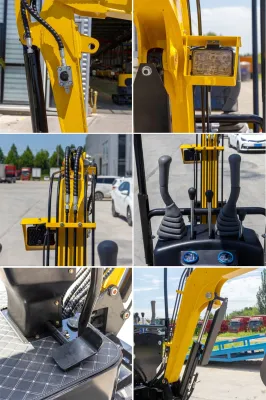

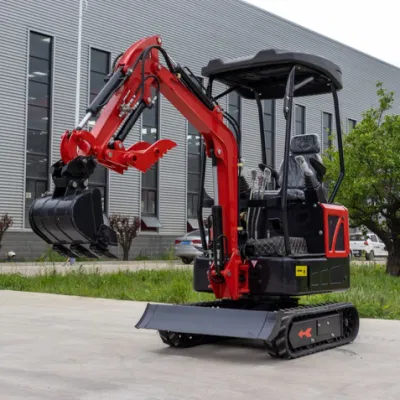

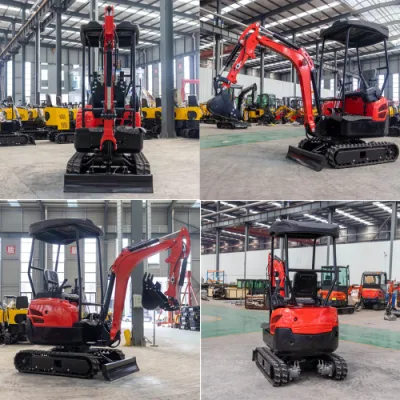

1.5 t miniature backhoe excavadora mini digger excavator/micro digger/small digger/excavator machine
1.5 t miniature backhoe excavadora mini digger excavator/micro digger/small digger/excavator machine is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,digging trench It is with small engine, simple design, easy to maintain.
Feasure:Easy to operate
Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
BIG PERFORMANCE IN A COMPACT DESIGN
Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
SAFETY ON THE JOB SITE
Your safety is our top priority. The mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.
LOWER OPERATING COSTS
Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the mini excavator was designed with reducing your operating costs in mind.
One set with one standard digging bucket 380mm and 4 pillars canopy.
Color:it can choose yellow, blue, red,black accepted customized.
Narrow bucket(200mm width), Plain bucket (500mm width), Ripper, Grabber, Rake,Auger,quick hitch
Parameter
Technology Specification | |
Model | 1500 kg |
Weight | HT 15 |
Digging bucket capacity | 0.025cbm/120 kg |
Bucket width | 380 mm |
Engine | KOOP (292F) |
| Optional Enigne | LCT/BRIGGS&STRATTON |
Bore stroke | Double cylinder,Air cool |
Rated power | 14kw/3000 r/min |
Displacement | 0.794 L |
Travel speed | 3.5 km/h |
Operating range | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max.Dumping height | 1850 mm |
Max.Digging radius on ground | 2850 mm |
Min. Rotation Radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
Package &Shipping
One set packing by Wooden case
20' Containter can hold 6 sets
40' Containter can hold 12 sets.
