Basic Info.
Model NO.
JG95
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Boom Length
4000mm
Arm Length
2000mm
Max Radius of Capture
7000~7500mm
MOQ
1set
Transport Package
Nude Packing
Specification
6600*2350*2950mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000units/ Year
Product Description

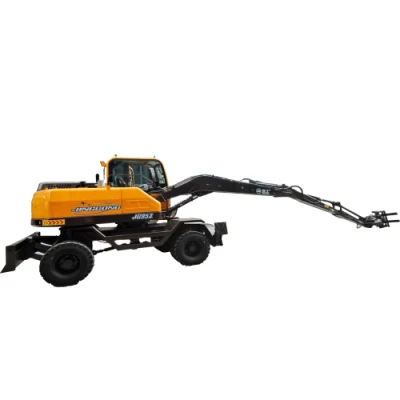

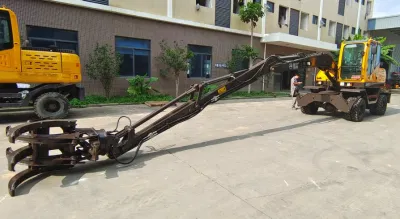

JG95Z Grapple Excavator Long Reach Arm
Equipped with 62.5KW turbocharged engine, this type of grapple wheel excavator shows excellent performance in
slope climbing, materials loading and so forth. By utilizing a plunger pump, this agricultural excavator enjoys smooth
movement and high working efficiency. The 360° rotary grab makes our wheeled excavator popular with farmers for
loading sugarcanes and timbers etc.
Equipped with 62.5KW turbocharged engine, this type of grapple wheel excavator shows excellent performance in
slope climbing, materials loading and so forth. By utilizing a plunger pump, this agricultural excavator enjoys smooth
movement and high working efficiency. The 360° rotary grab makes our wheeled excavator popular with farmers for
loading sugarcanes and timbers etc.
| SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR | ||||||||||
| RANGE OF OPERATION | Boom length | 4000mm | ||||||||
| Arm length | 2000mm | |||||||||
| Max radius of capture | 7000~7500mm | |||||||||
| Max. Opening Width of Grab | 1250mm | |||||||||
| Min. Opening Width of Grab | 80mm | |||||||||
| Max. Radius Grabing Weight | 800kg | |||||||||
| Grapple rotation angle | 360° | |||||||||
| Max dumping height | 4650~5500mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 6600*2350*2950mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Drive axle | Reinforced integral 10Ton Axle | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7800kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 65kw | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Max Hauling force | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 8.25-16 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
