Basic Info.
Model NO.
K210SD
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Operating Weight
26000kg
Rated Powe
115kw
Max. Digging Depth
5704mm
Max. Digging Height
10577mm
Max. Pumping Height
8430mm
Max. Digging Radius
9925mm
Length of Machine
10000mm
Engine Model
Isuzu 6bg1trp
Max. Torque
629n.M at 1600 Rpm
Transport Package
Bulk
Specification
SGS
Trademark
kudat
Origin
China
Production Capacity
500PCS/Year
Product Description

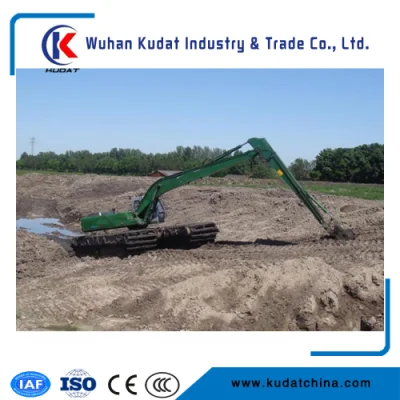

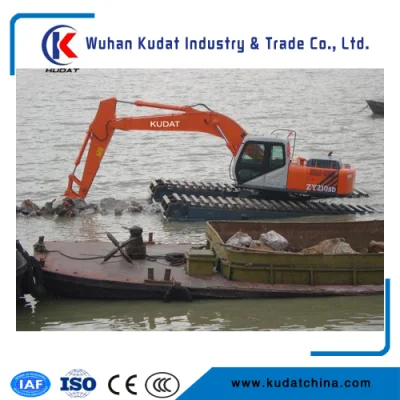

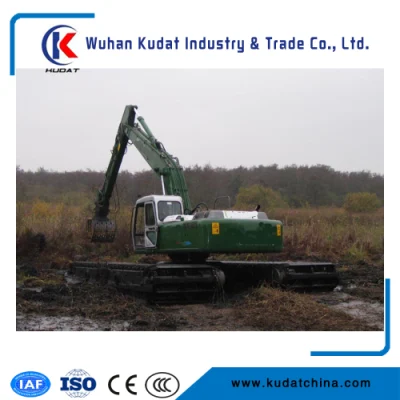

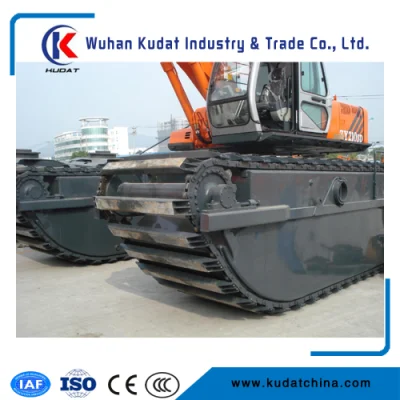

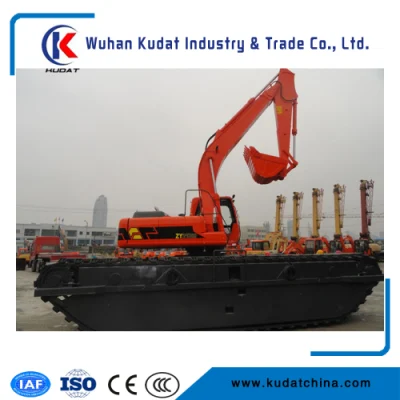

Amphibious Excavators (K210SD)
K210SD Amphibious vessel excavators equipped with Isuzu turbo charged inter cooled diesel engine, Luxury cabin with air conditioner, Original German Rexroth hydraulic pumps and valves. Operating weight: 26000kg
Rated power: 115kw/2000r. M. P
Bucket capacity: 0.8m³
Max. Digging depth: 5704mm
Max. Digging height: 10577mm
Max. Pumping height: 8430mm
Max. Digging radius: 9925mm
Length of machine: 10000mm
Width of upper carriage: 2470mm
Width of under carriage: 5200mm
Length of track shoe: 7250mm
Contact area pressure ratio 0.014*9.8N/cm³
| Specification | |
| Operating weight | 26000kg |
| Standard bucket capacity | 0.8m 3 |
| Arm length | 2912mm |
| Boom length | 5680mm |
| ENGINE | |
| Model | Isuzu 6BG1TRP |
| Type | Turbo-charged, inter cooled |
| Number of cylinder | 6 |
| Max. power/rpm | 114KW/2100rpm |
| Max. torque | 629N.M at 1600 rpm |
| Displacement | 6.49L |
| HYDRAULIC SYSTEM | |
| Main pumps | |
| Type | Variable displacement axial piston pumps |
| Max. displacement | 2×107cm 3 /r |
| Max. flow | 20L/min |
| Working pressure | 32Mpa |
| Hydraulic motor S | |
| Slew | Fixed displacement axial piston motor |
| Travel | Variable displacement axial piston motors |
| Performance | |
| Slew speed | 11rpm |
| Min. back slew radius | 2828mm |
| Max. travel speed high/low | 5.4/3.2km/h |
| Grade ability | 35° |
| traction force | 279.8kn |
| Max. digging force of bucket | 122.85kn |
| Max. digging force arm | 97.64kn |
| Groud pressure | 0.14kg/cm 3 |
| Tank capacity | |
| Fuel tank capacity | 296L |
| Hydraulic tank capacity | 296L |
After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
