Basic Info.
Model NO.
XE370D
Drive Type
Internal Combustion Drive
Bucket Capacity
1.4~1.8 Cbm
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
36800kg
Engine Power
212kw
Maximum Digging Height
10445mm
Maximum Digging Depth
7423mm
Max Digging Radius
11114mm
Rated Speed
5.4/3.2 Km/H
Max. Digging Reach
10470 mm
Arm Digging Force
225 Kn
Bucket Digging Force
263 Kn
Ground Pressure
66.6 Kpa
Gradeability
70
Transport Package
Nude Package
Specification
11386*3190*3530 mm
Trademark
CRUKING
Origin
China
HS Code
8429521200
Production Capacity
100/Month
Product Description

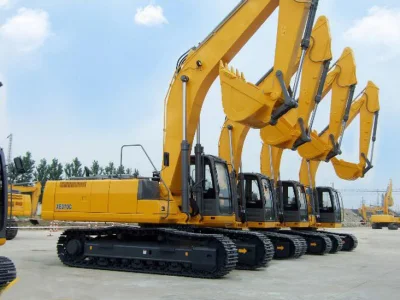

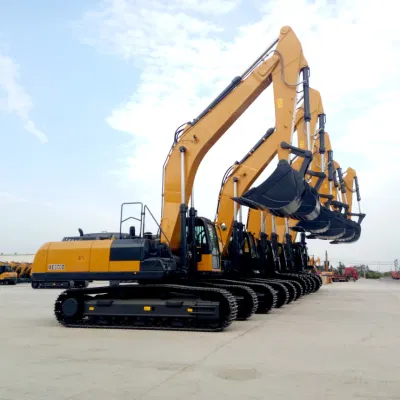

XE370D 37ton Huge Crawler Excavator for Sale
Advantage
1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
| Description | Unit | Parameter value | |||
| Operating weight | kg | 36800 | |||
| Bucket capacity | m³ | 1.4~1.8 | |||
| Engine | Model | Engine | GH-6HK1XKSC-03 | ||
| Style | Direct injection | --- | √ | ||
| Four strokes | --- | √ | |||
| Water cooling | --- | √ | |||
| Turbo-charging | --- | √ | |||
| Air to air intercooler | --- | √ | |||
| No. of cylinders | --- | 6 | |||
| Output power | kW/ r/min | 212/2000 | |||
| torque/speed | N.m | 1080/1500 | |||
| Displacement | L | 7.79 | |||
| Main performance | Travel speed(H/L) | km/h | 5.4/3.2 | ||
| Gradeability | % | 70 | |||
| Rotary speed | r/min | 9.7 | |||
| Ground pressure | kPa | 66.7 | |||
| Bucket digging force | kN | 263 | |||
| Arm digging force | kN | 188 | |||
| Hydraulic system | Main pump | -- | K5V160DTH | ||
| Rated flow of main pump | L/min | 2×304 | |||
| Main safety valve pressure | MPa | 34.3/37 | |||
| Pressure of pilot system | MPa | 3.9 | |||
| Oil Capacity | Fuel tank capacity | L | 660 | ||
| Hydraulic tank capacity | L | 350 | |||
| Engine oil capacity | L | 30 | |||
| Appearance size | Overall length | mm | 11388 | ||
| Overall width | mm | 3190 | |||
| Overall height | mm | 3530 | |||
| Width of platform | mm | 3050 | |||
| Length of crawler | mm | 5035 | |||
| Overall width of chassis | mm | 3190/600 Crawer,3290/700 Crawer,3390/800 Crawer | |||
| Width of crawler | mm | 600 | |||
| Wheel base of crawler | mm | 4040 | |||
| Crawler gauge | mm | 2590 | |||
| Clearance under counterweight | mm | 1197 | |||
| Min. ground clearance | mm | 500 | |||
| Min. rear-end swing radius | mm | 3700 | |||
| Working scope | Max. digging height | mm | 10445 | ||
| Max. dumping height | mm | 7287 | |||
| Max. digging depth | mm | 7423 | |||
| Max. digging depth at the range of level 8 feet | mm | 7266 | |||
| Max. vertical wall digging depth | mm | 6776 | |||
| Max. digging reach | mm | 11114 | |||
| Min. swing radius | mm | 4369 | |||
| Worker | Standard | Length of boom | mm | 6400 | |
| Length of arm | mm | 3200 | |||
| Bucket capacity | m³ | 1.6 | |||
| Length of arm | m³ | 2670 | |||
| Bucket capacity | m³ | 1.4/1.5/1.6 | |||
| 1.8 | |||||
