Product Description

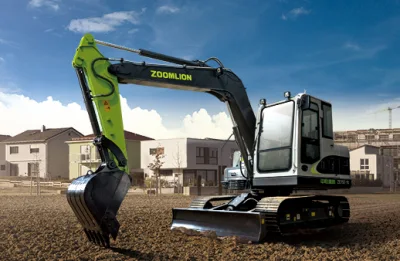

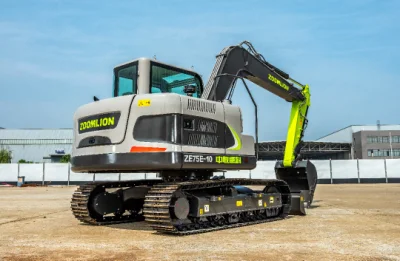

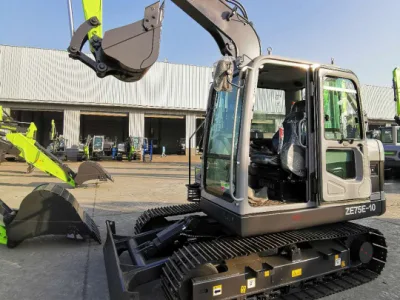

ZE75E-10 excavator adopts Zoomlion symbolic family painting, which is not only the external upgrading, but also the confident eye-catching declaration after machine upgrading.
Fuel consumption per hour has been further reduced, and work efficiency & fuel efficiency have been greatly enhanced thanks to the tailored load-sensing system. Three work modes can be optimally matched under corresponding applications, thus delivering enhanced work efficiency with saved energy.
Critical stress points on strengthened and thickened boom make the boom easily bear enormous pressure during construction. The D-ARCS bucket with reduced resistance and increased capacity has further prolonged bucket service life and lowered comprehensive fuel consumption. Innovated track roller design brings greatly enhanced machine stability.
The back-lift integrated rear hood design guarantees that all the maintenance and inspection points are easily accessible from the same place. Inspection and maintenance can be conducted comfortably to achieve shortened maintenance time. Special-purpose hydraulic oil with prolonged service life can save more than 50% maintenance cost for users. It is a good assistant for you
| Items | Units | ZE75E-10 | |
| Basic Technical Data | Operating Weight | kg | 7500 |
| Standard Capacity | m³ | 0.3 | |
| Slewing Speed | r/min | 11.5 | |
| Traveling Speed(high/low) | km/h | 4.8/2.9 | |
| Max. Drawbar Pull | kN | 64.3 | |
| Digging Force of Bucket | kN | 54 | |
| Digging Force of Stick | kN | 40 | |
Engine | Engine Manufacturer | / | YANMAR |
| Engine Model | / | 4TNV98-ZCSLKC | |
| Rated Power | kW/rpm | 44/2200 | |
| Displacement | L | 3.3 | |
| Emission Standard | / | EU Stage IIIA | |
Dimensions | Length | mm | 6149 |
| Width | mm | 2280 | |
| Height | mm | 2565 | |
| Tail Slewing Radius | mm | 1775 | |
| Track Gauge | mm | 1750 | |
| Length of Track On Ground | mm | 2200 | |
| Operating Range | Max. Digging Radius | mm | 6270 |
| Max. Digging Reach | mm | 6119 | |
| Max. Digging Depth | mm | 4046 | |
| Max. Digging Height | mm | 7003 | |
| Max. Dumping Height | mm | 5128 | |
